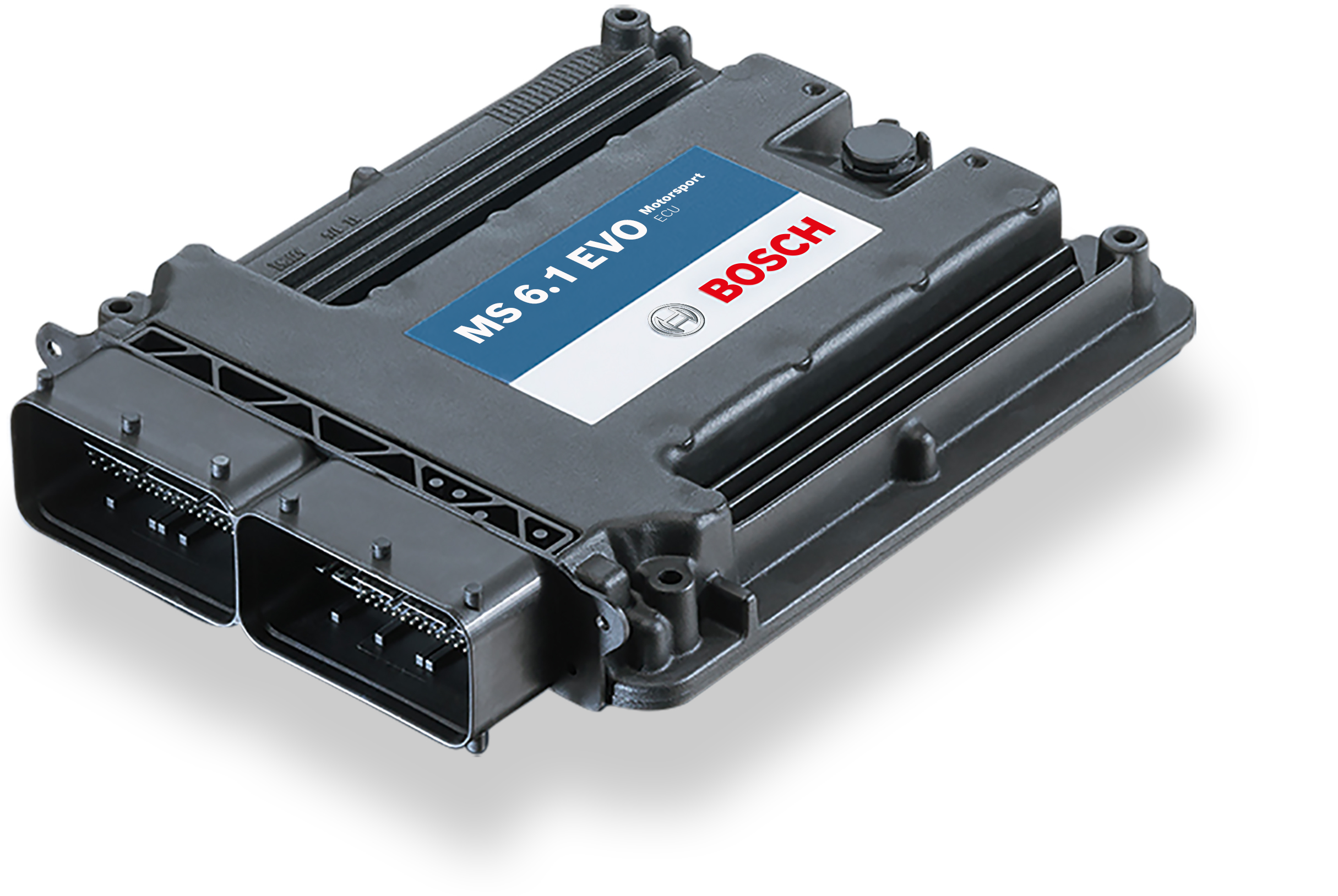

Engine Control Unit MS 6.1 EVO

The MS 6.1 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.1 EVO to support complex or unusual engine or chassis configurations.

Product Highlights

Features

Optimized for low-pressure injection
Measurement with 21 analog inputs
4 GB memory plus 4 GB upgrade
SENT sensor support

Downloads

To get latest firmware, please contact your customer account manager or send an email to motorsport@bosch.com

Literature

Product Details

Application

Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Ignition 12 x ignition control, IGBT or BJT, coils with integrated amplifier
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Physical engine model for fast application determine engine load by throttle position or air pressure signals mixture control and basic ignition guided by main signal relative load rl Subsystems pit speed-, launch-, rpm-limiter and ASR are integrated inside torque control Separated power cut functions to assist various gear cut systems Diagnostics Integrated safety strategy for electronic throttle control
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Integrated support of manual gearshift
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Electronic throttle control	Optional, see Upgrades
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Variable Valve Timing VVT	Optional, see Upgrades
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Turbo control	Optional, see Upgrades
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Traction control	Optional, see Upgrades
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Launch control	Optional, see Upgrades
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only LTE Ethernet telemetry support
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Internal logger 4 GB memory on Partition 1 enabled 100 free configurable channels, 20 Hz FULL_LOG_1 (1,500 channels/1 kHz sampling rate on Partition 1) optional FULL_LOG_2 (4 GB memory/1,500 channels/1 kHz sampling rate on Partition 2) optional
Low pressure injection Max. 12 cylinders up to 12,500 rpm, high impedance injectors only Logging rates Usage of all features: 300 kB/s Primary logging use case: 600 kB/s Logging data download rate: up to 4 MB/s

Technical Specification

Mechanical Data
Mechanical Data Aluminum housing
Mechanical Data 2 Bosch connectors	196 pins in total
Mechanical Data Size	226 x 181 x 44 mm
Mechanical Data Weight	1,086 g
Mechanical Data Protection Classification	IP54
Mechanical Data Temp. range (at internal sensors)	-20 to 80°C

Electrical Data
Electrical Data Power supply	6 to 18 V
Electrical Data CPU	Dual Core 667 MHz, FPGA

Inputs
Inputs 21 analog inputs
Inputs	6 x reserved for electronic throttle controls
Inputs	3 x no integrated pull-up
Inputs	3 x option for angle synchronous measurement, no integrated pull-up
Inputs	4 x fixed 3.01 kOhm pull-up
Inputs	5 x switchable 3.01 kOhm pull-up

6 internal measurements
6 internal measurements	1 x ambient pressure
6 internal measurements	1 x acceleration 6-axis
6 internal measurements	2 x ECU temperature
6 internal measurements	2 x ECU voltage

8 function related inputs
8 function related inputs	1 x Thermocouple exhaust gas temperature sensors (K-type)
8 function related inputs	2 x Lambda interfaces for LSU 4.9 sensor types
8 function related inputs	1 x Lap trigger/beacon input
8 function related inputs	4 x Knock sensors

18 digital inputs
18 digital inputs	1 x switchable Hall or inductive sensor for flywheel measurement
18 digital inputs	2 x Hall sensor for sync wheel detection
18 digital inputs	4 x switchable Hall or DF11 sensors for camshaft position or wheel speed
18 digital inputs	2 x switchable Hall or inductive sensors for turbo speed measurement
18 digital inputs	1 x digital switch for engine ON/OFF
18 digital inputs	8 x digital, e.g. SENT

Sensor supplies and screens

4 x sensor supplies 5 V / 50 mA

Sensor supplies and screens

3 x sensor supplies 5 V / 150 mA

Sensor supplies and screens

7 x sensor grounds

Sensor supplies and screens

2 x sensor screens

Outputs
Outputs 28 function related outputs
Outputs Low Pressure Injection
Outputs	12 x 2.2 A controls, high impedance injectors
Outputs Ignition
Outputs	12 x control, IGBT or BJT, coils with integrated amplifier
Outputs 2 x 8.5 A H-bridge reserved for electronic throttle
Outputs 2 x 4 A pwm lowside switch for Lambda heater

19 freely configurable outputs
19 freely configurable outputs	1 x 8.5 A H-bridge
19 freely configurable outputs	2 x 4 A pwm lowside switch
19 freely configurable outputs	4 x 3 A pwm lowside switch
19 freely configurable outputs	8 x 2.2 A pwm lowside switch
19 freely configurable outputs	4 x 1 A pwm lowside switch

3 output signals
3 output signals	1 x engine rpm
3 output signals	1 x flywheel
3 output signals	1 x trigger wheel

Software Tools (free download)

Data Analysis tool WinDarab V7

Software Tools (free download)

System Configuration tool RaceCon 2.7.0.9 or later

Mating Connectors (not included)
Mating Connectors (not included) Mating Connector 91 pins	F02U.B00.711-01
Mating Connectors (not included) Mating Connector 105 pins	F02U.B00.712-01

Norms

Product Safety

Norms

EN IEC 62368-1:2020+A11:2020

Materials

REACH - Nr. 1907/2006

EMC

UNECE10:rev.6/AMD1:2020

EMC

KN41

EMC

ISO11452-2

EMC

ISO11452-4

EMC

ISO10605

EMC

ISO7637-2

EMC

ISO7367-3

EMC

ISO16750-2

EMC

US FCC: Title 47, Part 15 Subpart B

EMC

ICES-003

Testing

SAEJ1211

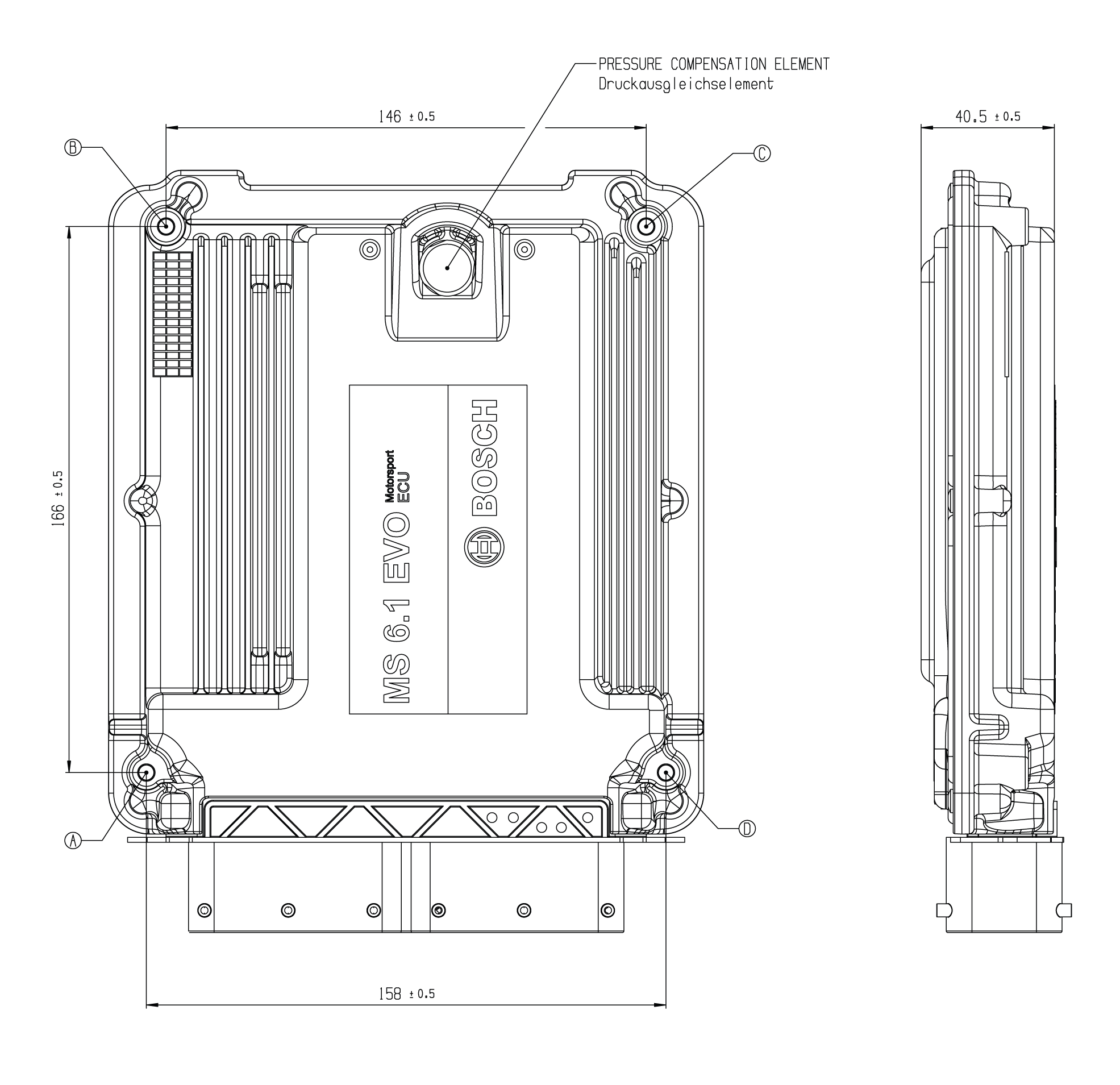

Dimensions

Further Information

Communication

2 Ethernet

3 CAN

2 Ethernet

1 LIN

2 Ethernet

8 SENT

2 Ethernet

1 RS232

2 Ethernet

1 Time sync synchronization Ethernet

2 Ethernet

3 Communication screens

Installation Notes

Maintenance Interval: 220 h or a maximum of two years

Depending on your experiences with calibration of ECUs, we recommend calibration support from Bosch Motorsport.

Maintenance Interval: 220 h or a maximum of two years

Please remember that the mating connectors and the programming interface MSA-Box II are not included and must be ordered separately.

Application
Configurable flywheel- and trigger disc geometries, Selectable links between functions and in- or outputs

Function documentation
Automatically created during code generation

Application
Configurable flywheel- and trigger disc geometries, Selectable links between functions and in- or outputs

MatLab code generation
Support for customer own MatLab function development

Ordering Information

Engine Control Unit MS 6.1 EVO
Order number: F02U.V03.113-01

Rugged USB flash drive
Order number: F02U.V03.534-01

Connector for USB flash drive on car loom side
Order number: F02U.002.996-01

Adapter cable to PC USB-Port
Order number: F02U.V01.343-01

Software Options

Engine Function Package 1
Order number: F02U.V02.001-01

Engine Function Package 2
Order number: F02U.V02.002-01

Measurement Package
Order number: F02U.V02.000-01

CCA Hardware Upgrade per device
Order number: F02U.V02.137-01

FULL_LOG_1
Order number: F02U.V02.304-01

FULL_LOG_2
Order number: F02U.V02.305-01

Gear Control Package 1
Order number: please contact MEGA-Line

Gear Control Package 2
Order number: F02U.V02.108-01

SW Package MS 6 Drag 1
Order number: F02U.V0U.409-01

SW Package MS 6 Drag 2
Order number: F02U.V0U.410-01

Innovation License Device
Order number: F02U.V02.510-01

Innovation Package Project
Order number: F02U.V02.511-01

DATA_USB
Order number: F02U.V03.476-01

Accessories

Breakout Box BOB MS 6 EVO
Order number: F02U.V02.294-02

Mating Connector 91 pins
Order number: F02U.B00.711-01

Mating Connector 105 pins
Order number: F02U.B00.712-01

Upgrades

Engine Function Package 1

Electronic Throttle Control
VVT
Turbo Control

Engine Function Package 2

Traction Control
Launch Control

Measurement Package

17 Additional analog inputs

7 x no integrated pull-up
1 x option for angle synchronous measurement, no integrated pull-up
1 x fixed 3.01 kOhm pull-up
8 x switchable 3.01 kOhm pull-up

Measurement Package

Extension of the use of 8 digital channels as analogue / digital inputs (shared)

Measurement Package

1 Additional function related inputs

1 x Thermocouple K-type

CCA Hardware Upgrade per device

Provides the option to run customer developed software code on Bosch ECU

FULL_LOG_1

Extension for Partition 1

1,500 channels
1 kHz sampling rate

FULL_LOG_2

Activation of Partition 2

1,500 channels
1 kHz sampling rate
4 GB memory

Gear Control Package 1

Gear control MEGA-Line functionality, has to be used with MEGA-Line components (License model via MEGA-Line)

Gear Control Package 1

-- Link to MEGA-Line Support Request --

Gear Control Package 1

-- Link to MEGA-Line License Request Form --

Gear Control Package 2

Gear control Bosch Motorsport functionality

SW Package MS 6 Drag 1

Launch Time
Launch Distance
Torque Pre-Control
Launch RPM Control
Universal Outputs for Time/Distance Controls

SW Package MS 6 Drag 2 (requires Drag 1 License)

Acceleration Sensor MM5.10 included
Time/Distance Boost Control
Driveshaft Speed Control
Driveshaft Gradient Control
Acceleration Control
Wheelie Control

Innovation License Device

Activation of a set of additional functions for a single device:

Crank rotation direction detection (using sensor DG23i)
Using a 2nd crank backup sensor
Crank-Preset, quick start based on previous crank stop position
Far-Bank, 2nd injector per cylinder possible
Cam-only-synchronisation, engine run without crank sensor signal (specific cam trigger wheel needed)

Innovation Package Project

Innovation Package Project has the same content as Innovation License Device, but license is valid for the whole project instead of a single device

DATA_USB

Data copy to USB flash drive
