Engine Control Unit MS 6.2 EVO

Engine Control Unit MS 6.2 EVO

The MS 6.2 EVO engine control unit manages gasoline engines up to 12 cylinders. As a member of our MS 6 family it features a powerful digital processing core with floating point arithmetic and a high-end FPGA for ultimate performance and flexibility. The MS 6 family utilizes a new software development process based on MATLAB/Simulink which significantly speeds algorithm development by using automatic code and documentation generation. Custom functions can be quickly and easily generated. The flexible hardware design allows the MS 6.2 EVO to support complex or unusual engine or chassis configurations.

Product Highlights

Features

  • Optimized for low-pressure injection
  • Measurement with 38 analog inputs
  • 4 GB memory plus 4 GB upgrade
  • SENT sensor support

Downloads

To get latest firmware, please contact your customer account manager or send an email to motorsport@bosch.com


Literature

Product Details

Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Ignition
  • 12 x ignition control, IGBT or BJT, coils with integrated amplifier
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Physical engine model for fast application
  • determine engine load by throttle position or air pressure signals
  • mixture control and basic ignition guided by main signal relative load rl
  • Subsystems pit speed-, launch-, rpm-limiter and ASR are integrated inside torque control
  • Separated power cut functions to assist various gear cut systems
  • Diagnostics
  • Integrated safety strategy for 2 electronic throttle controls
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Integrated support of manual gearshift
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Electronic throttle control
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Variable Valve Timing VVT
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Turbo control
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Traction control
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Launch control
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
LTE Ethernet telemetry support
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Internal logger
  • 4 GB memory on Partition 1 enabled
  • 100 free configurable channels, 20 Hz
  • FULL_LOG_1 (1,500 channels/1 kHz sampling rate on Partition 1) optional
  • FULL_LOG_2 (4 GB memory/1,500 channels/1 kHz sampling rate on Partition 2) optional
Low pressure injection
  • Max. 12 cylinders up to 12,500 rpm, high impedance injectors only
Logging rates
  • Usage of all features: 300 kB/s
  • Primary logging use case: 600 kB/s
  • Logging data download rate: up to 4 MB/s

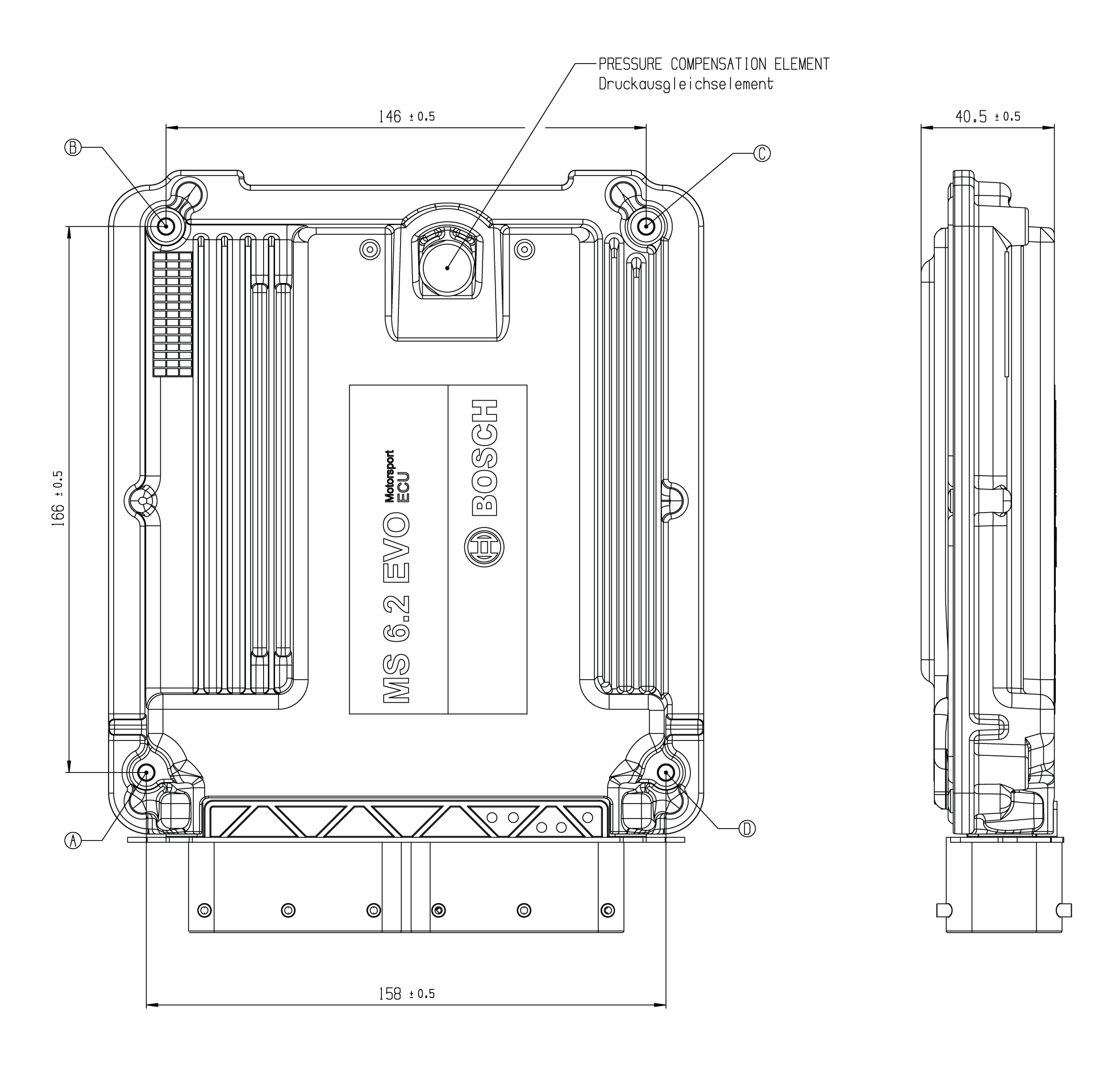

Mechanical Data
Mechanical Data
Aluminum housing
Mechanical Data
2 Bosch connectors
196 pins in total
Mechanical Data
Size
226 x 181 x 44 mm
Mechanical Data
Weight
1,086 g
Mechanical Data
Protection Classification
IP54
Mechanical Data
Temp. range (at internal sensors)
-20 to 80°C
Electrical Data
Electrical Data
Power supply
6 to 18 V
Electrical Data
CPU
Dual Core 667 MHz, FPGA
Inputs
Inputs
38 analog inputs
Inputs
6 x reserved for electronic throttle controls
Inputs
10 x no integrated pull-up
Inputs
4 x option for angle synchronous measurement, no integrated pull-up
Inputs
5 x fixed 3.01 kOhm pull-up
Inputs
13 x switchable 3.01 kOhm pull-up
8 analog/digital inputs (shared)
8 analog/digital inputs (shared)
8 x option for angle synchronous measurement / digital (e.g. SENT)
6 internal measurements
6 internal measurements
1 x ambient pressure
6 internal measurements
1 x acceleration 6-axis
6 internal measurements
2 x ECU temperature
6 internal measurements
2 x ECU voltage
9 function related inputs
9 function related inputs
2 x thermocouple exhaust gas temperature sensors (K-type)
9 function related inputs
2 x Lambda interfaces for LSU 4.9 sensor types
9 function related inputs
1 x lap trigger/beacon input
9 function related inputs
4 x knock sensors
10 digital inputs
10 digital inputs
1 x switchable Hall or inductive sensor for flywheel measurement
10 digital inputs
2 x Hall sensor for sync wheel detection
10 digital inputs
4 x switchable Hall or DF11 sensors for camshaft position or wheel speed
10 digital inputs
2 x switchable Hall or inductive sensors for turbo speed measurement
10 digital inputs
1 x digital switch for engine ON/OFF
Sensor supplies and screens
Sensor supplies and screens
4 x sensor supplies 5 V / 50 mA
Sensor supplies and screens
3 x sensor supplies 5 V / 150 mA
Sensor supplies and screens
7 x sensor grounds
Sensor supplies and screens
2 x sensor screens
Outputs
Outputs
28 function related outputs
Outputs
Low Pressure Injection
Outputs
12 x 2.2 A low pressure injection for high impedance injectors
Outputs
Ignition
Outputs
12 x ignition control, IGBT or BJT, coils with integrated amplifier
Outputs
2 x 8.5 A H-bridge reserved for electronic throttle
Outputs
2 x 4 A pwm lowside switch for Lambda heater
19 freely configurable outputs
19 freely configurable outputs
1 x 8.5 A H-bridge
19 freely configurable outputs
2 x 4 A pwm lowside switch
19 freely configurable outputs
4 x 3 A pwm lowside switch
19 freely configurable outputs
8 x 2.2 A pwm lowside switch
19 freely configurable outputs
4 x 1 A pwm lowside switch
3 output signals
3 output signals
1 x engine rpm
3 output signals
1 x flywheel
3 output signals
1 x trigger wheel
Software Tools (free download)
Software Tools (free download)
Data Analysis tool WinDarab V7
Software Tools (free download)
System Configuration tool RaceCon 2.7.0.9 or later
Mating Connectors (not included)
Mating Connectors (not included)
Mating Connector 91 pins
F02U.B00.711-01
Mating Connectors (not included)
Mating Connector 105 pins
F02U.B00.712-01
Norms
Norms
Product Safety
Norms
EN IEC 62368-1:2020+A11:2020
Materials
Materials
REACH - Nr. 1907/2006
EMC
EMC
UNECE10:rev.6/AMD1:2020
EMC
KN41
EMC
ISO11452-2
EMC
ISO11452-4
EMC
ISO10605
EMC
ISO7637-2
EMC
ISO7367-3
EMC
ISO16750-2
EMC
US FCC: Title 47, Part 15 Subpart B
EMC
ICES-003
Testing
Testing
SAEJ1211
.
.
.

Further Information

2 Ethernet
2 Ethernet
3 CAN
2 Ethernet
1 LIN
2 Ethernet
8 SENT
2 Ethernet
1 RS232
2 Ethernet
1 Time sync synchronization Ethernet
2 Ethernet
3 Communication screens
Maintenance Interval: 220 h or a maximum of two years
Maintenance Interval: 220 h or a maximum of two years
Depending on your experiences with calibration of ECUs, we recommend calibration support from Bosch Motorsport.
Maintenance Interval: 220 h or a maximum of two years
Please remember that the mating connectors and the programming interface MSA-Box II are not included and must be ordered separately.
Application
Configurable flywheel- and trigger disc geometries, Selectable links between functions and in- or outputs
Application
Configurable flywheel- and trigger disc geometries, Selectable links between functions and in- or outputs
Function documentation
Automatically created during code generation
Application
Configurable flywheel- and trigger disc geometries, Selectable links between functions and in- or outputs
MatLab code generation
Support for customer own MatLab function development

Engine Control Unit MS 6.2 EVO
Order number: F02U.V03.115-01

Rugged USB flash drive
Order number: F02U.V03.534-01

Connector for USB flash drive on car loom side
Order number: F02U.002.996-01

Adapter cable to PC USB-Port
Order number: F02U.V01.343-01

Software Options

CCA Hardware Upgrade per device
Order number: F02U.V02.137-01

FULL_LOG_1
Order number: F02U.V02.304-01

FULL_LOG_2
Order number: F02U.V02.305-01

Gear Control Package 1
Order number: please contact MEGA-Line

Gear Control Package 2
Order number: F02U.V02.108-01

SW Package MS 6 Drag 1
Order number: F02U.V0U.409-01

SW Package MS 6 Drag 2
Order number: F02U.V0U.410-01

Innovation License Device
Order number: F02U.V02.510-01

Innovation Package Project
Order number: F02U.V02.511-01

DATA_USB
Order number: F02U.V03.476-01

Accessories

Breakout Box BOB MS 6 EVO
Order number: F02U.V02.294-02

Mating Connector 91 pins
Order number: F02U.B00.711-01

Mating Connector 105 pins
Order number: F02U.B00.712-01

CCA Hardware Upgrade per device
CCA Hardware Upgrade per device
Provides the option to run customer developed software code on Bosch ECU
FULL_LOG_1
FULL_LOG_1
Extension for Partition 1
  • 1,500 channels
  • 1 kHz sampling rate
FULL_LOG_2
FULL_LOG_2
Activation of Partition 2
  • 1,500 channels
  • 1 kHz sampling rate
  • 4 GB memory
Gear Control Package 1
Gear Control Package 1
Gear control MEGA-Line functionality, has to be used with MEGA-Line components (License model via MEGA-Line)
Gear Control Package 1
-- Link to MEGA-Line Support Request --
Gear Control Package 1
-- Link to MEGA-Line License Request Form --
Gear Control Package 2
Gear Control Package 2
Gear control Bosch Motorsport functionality
SW Package MS 6 Drag 1
SW Package MS 6 Drag 1
  • Launch Timer
  • Launch Distance
  • Torque Pre-Control
  • Launch RPM Control
  • Universal Outputs for Time/Distance Controls
SW Package MS 6 Drag 2 (requires Drag 1 License)
SW Package MS 6 Drag 2 (requires Drag 1 License)
  • Acceleration Sensor MM5.10 included
  • Time/Distance Boost Control
  • Driveshaft Speed Control
  • Driveshaft Gradient Control
  • Acceleration Control
  • Wheelie Control
Innovation License Device
Innovation License Device
Activation of a set of additional functions for a single device:
  • Crank rotation direction detection (using sensor DG23i)
  • Using a 2nd crank backup sensor
  • Crank-Pre-set, quick start based on previous crank stop position
  • Far-Bank, 2nd injector per cylinder possible
  • Cam-only-synchronisation, engine run without crank sensor signal (specific cam trigger wheel needed)
Innovation Package Project
Innovation Package Project
Innovation Package Project has the same content as Innovation License Device, but license is valid for the whole project instead of a single device

DATA_USB

Data copy to USB flash drive
