Injection Valve EV 14

EV 14 injection valves are the latest revision of the EV 6 injection valve technology. EV 14 xT are the latest revision of the EV 12.

EV 14 is designed for a wide range of flow rates and spray patterns. Compact size and three standard versions simplify mounting in a variety of applications.

Downloads

Features

  • Flow rate at 3 bar: up to 1,000 g/min (n-heptane)
  • Max. 8 bar
  • Conical spray or 2-spray
  • With or without extension
  • Spray angle 15 to 85°

Technical Specifications

Mechanical Data

System pressure

Max. 5 bar (8 bar for motorsport use)

Weight

≤ 30 g

Installation lengths

33.6, 48.65 or 60.65 mm

Fuel input

Top-feed injector

Operating temperature

-40 to 110°C

Permissible fuel temperatures

≤ 70°C

Climate-proof corresponding to saline fog test DIN 50 021

Housing design

Compact (K), Standard (S), Long (L)

Spray type

C (Conical Spray) or E (2-Spray)

Flow rate at 3 bar (n-heptane)

151 to 1,462 cm³/min

103.5 to 1,000 g/min

Spray angle α

15 to 85°

Bent angle γ

0 to 15°

Coil resistance

See variations

Fuel compatibility

E85

Use with different media is not permitted.

Electrical Data

Power supply

6 to 16.5 V

Connectors and Wires

Connectors

Jetronic, Sumitomo, Motorsport connectors

Installation Notes

Please ask for more information before ordering.

Ordering Information

EV 14 ES, 116 g/min n-heptane

Order number: 0280.158.200

EV 14 CL, 150 g/min n-heptane

Order number: 0280.158.107

EV 14 ES, 150 g/min n-heptane

Order number: 0280.158.013

EV 14 CKxT, 237 g/min n-heptane

Order number: 0280.158.038

EV 14 EL, 237 g/min n-heptane

Order number: 0280.158.116

EV 14 CS, 387 g/min n-heptane

Order number: B280.436.038-09

EV 14 CS, 387 g/min n-heptane

Order number: B280.436.038-10

EV 14 ESxT, 429 g/min n-heptane

Order number: 0280.158.123

EV 14 CS, 503 g/min n-heptane

Order number: B280.436.038-08

EV 14 CS, 503 g/min n-heptane

Order number: B280.436.038-07

EV 14 CKxT, 670 g/min n-heptane

Order number: 0280.158.040

EV 14 CS, 670 g/min n-heptane

Order number: B280.436.487-01

EV 14 ES, 697 g/min n-heptane

Order number: B280.436.469-01

Accessories

Clip for locking bush of plastic

Order number: 2431.314.021

Clip for locking bush of steel

Order number: 2431.314.018

Dimensions

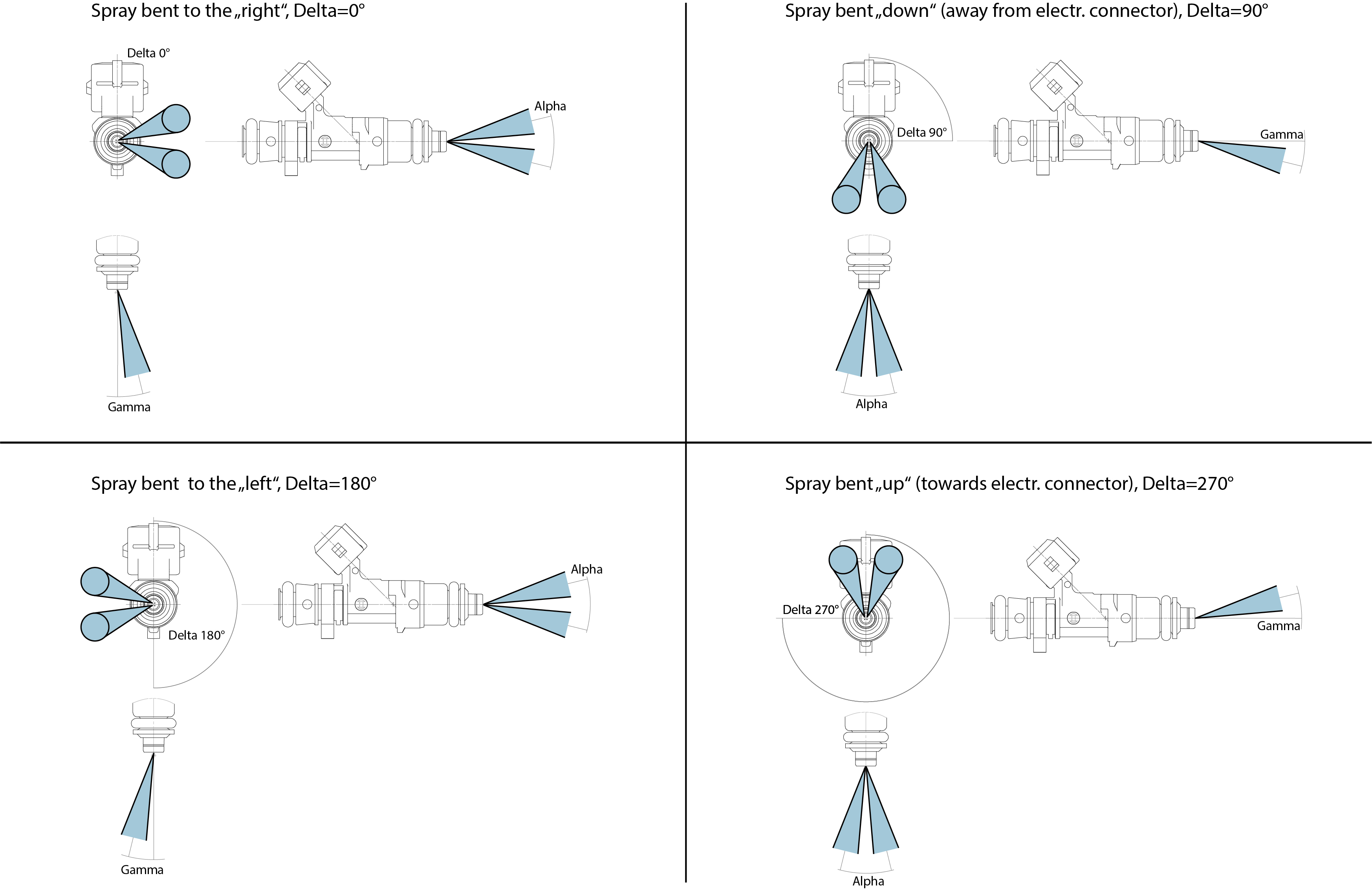

Delta Angel
Housing Variations

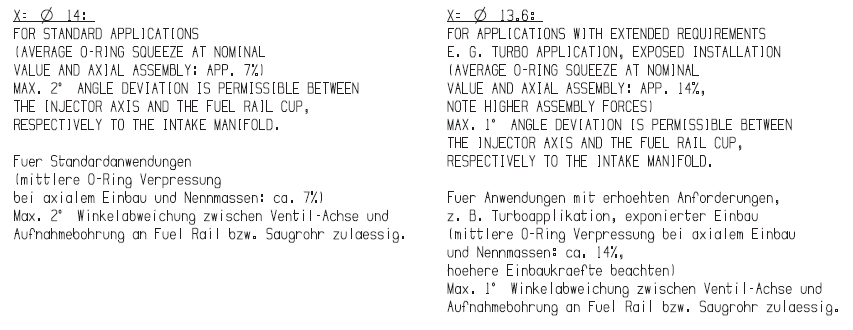

Mounting Instructions

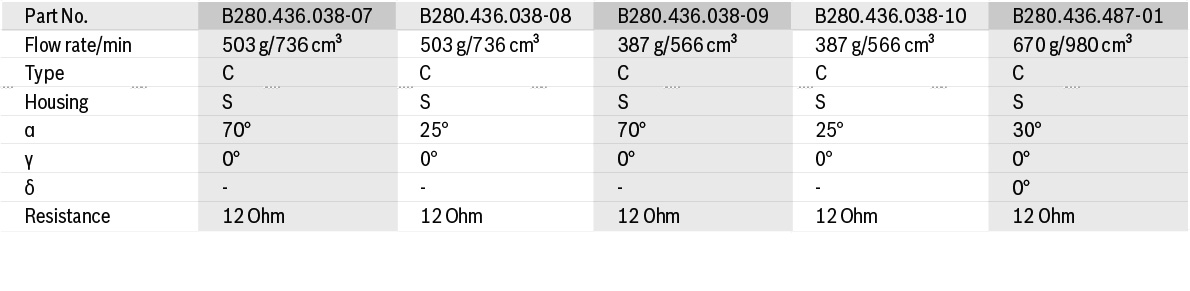

Variations of Motorsport Valves

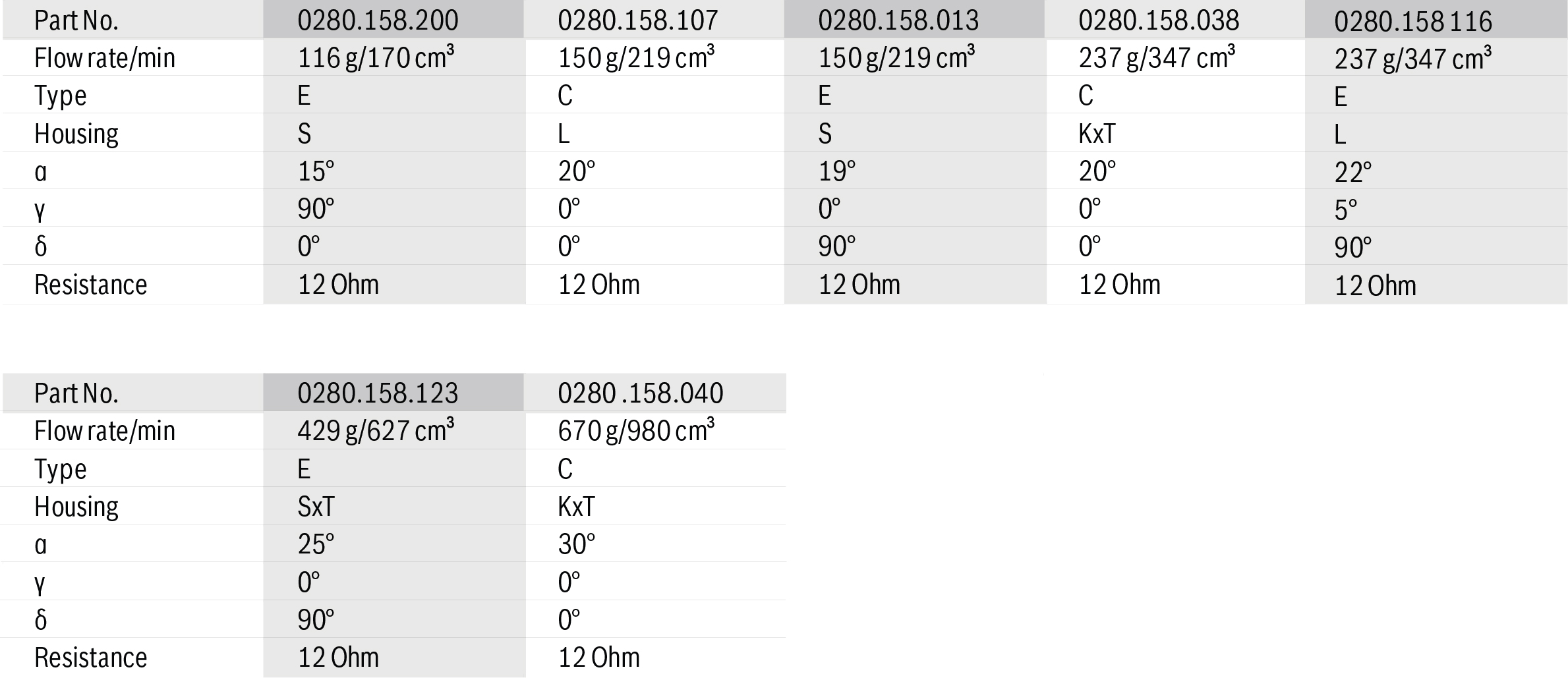

Variations of Production Type Valves

Further variations are available on request.



Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
