This adaptor offers the opportunity to convert a rail pressure regulator into an inline pressure regulator. The adaptor is able to hold a production type regulator as well as a motorsport regulator. Delivery without regulator.
- Downloads
- Features
- Application
- Technical Specifications
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Aluminum housing
- Fits to production type regulators and Motorsport regulators (FPR Mini 2, Mini 5, Mini A)
- Very light weight
Application
|
Fuel compatibility |
Gasoline, E85/M100 |
|
Operating temperature range |
-40 to 120°C |
|
Storage temperature range |
-40 to 100°C |
|

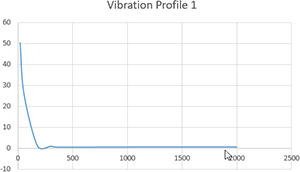

Max. vibration |
<600 m/s2 at 5 to 250 Hz |
Technical Specifications
Mechanical Data
|
Diameter |
50 mm |
|
Heigth |
55 mm |
|
Weight |
92 g |
|
Mounting |
Screw fastening with M6 screws into housing or M5 screws through housing |
Connectors and Wires
|
Connector supply |
2 x M14 x 1.5 |
|
Connector reflow |
M14 x 1.5 |
Ordering Information
FPR Adaptor light
Order number: F02U.V02.248-01

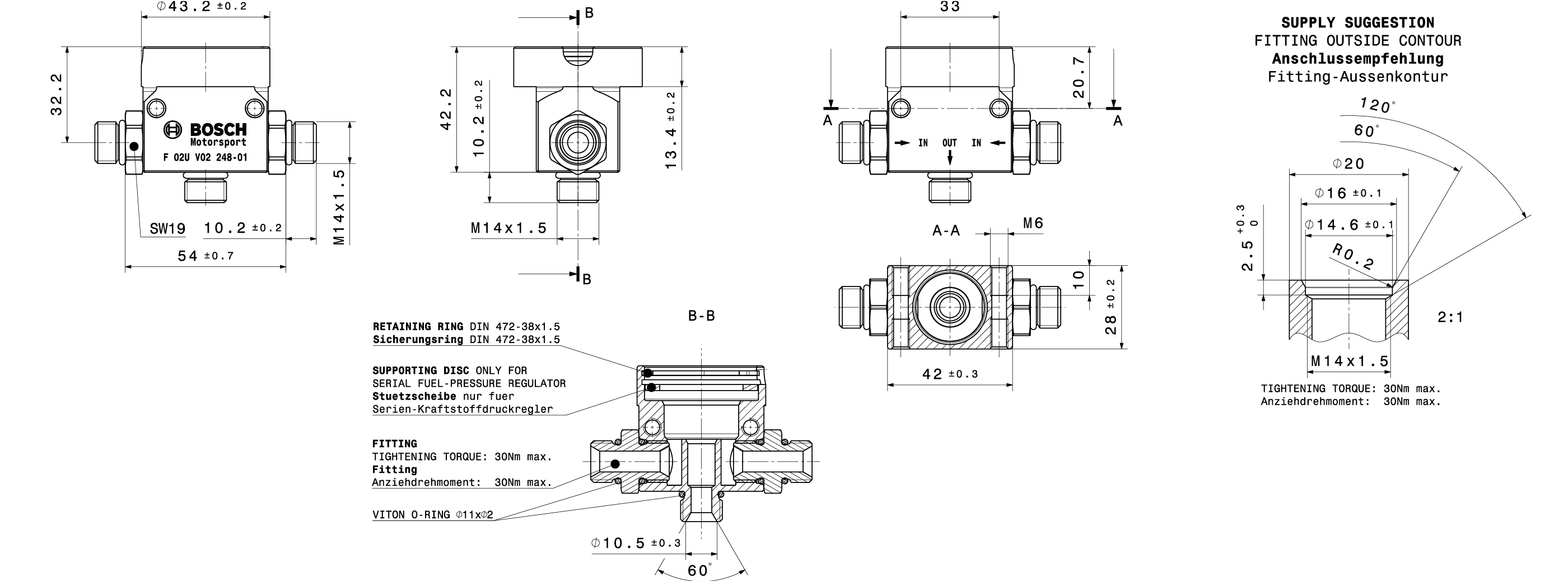

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
