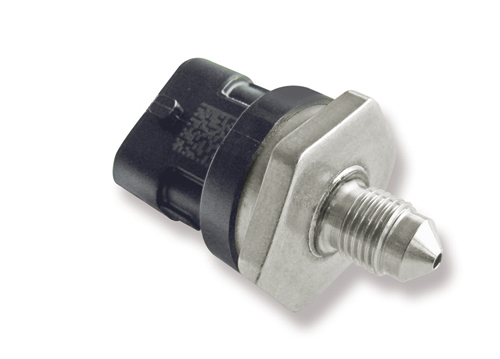

Pressure Sensor Fluid PSS-140/260/420/600

The PSS is specially designed to measure absolute pressure in gasoline direct injection applications. This sensor is also compatible with other kind of fluids e.g. Diesel, engine oil, transmission oil or brake fluid.

The sensor uses a thin layer technique to achieve high accuracy pressure measurements. The stainless steel measuring cells with piezoresistive bridges are hermetically welded with stainless steel pressure ports. The internal reference ensures ambient pressure independent measurements.

The main benefits of this sensor are its high accuracy, its wide measurement range and its robust and compact design.

Downloads

Features

  • Application: 0 to 140, 260, 420, 600 bar
  • Response time: 2 ms
  • Pressure reference type: Absolut
  • Power supply: 5 V
  • Weight: 35 g

Application

Application and max. pressure

Please see Variations

Pressure reference type

absolute

Operating and media temp. range

-40 to 130°C (140°C)

Storage temp. range

-30 to 60°C

Max. vibration

210 m/s2 at 147 to 1,350 Hz
175 m/s² at 1,350 to 2,000 Hz

Technical Specifications

Variations

PSS

-140

-260

-420

-600

Application (bar) 0 to

140

260

420

600

Max. pressure (bar)

180

320

560

660

Sensitivity at US = 5 V (mV/bar)

28.57

15.38

9.52

6.67

Mechanical Data

Male thread

M10 x 1

Wrench size

27 mm

Installation torque

22 ± 2 Nm in aluminum
32.5 ± 2.5 Nm in steel

Weight w/o wire

35.2 g

Sealing

sealed cone

Electrical Data

Power supply US

4.75 to 5.25 V

Max power supply US max

16 V

Full scale output UA

10 to 90 % US ratiometric

Current IS

12 mA

Characteristic

Load capacity

10 nF

Output resistance

10 Ohm

Tolerance (FS)

+ 1 % (0 to 100°C)
+ 1.5 % (-40 to 0°C and 100 to 130°C)

Sensitivity

Please see Variations

Offset

500 mV at US = 5 V

Connectors and Wires

Connector

Bosch Compact

Mating connector

3-pole Compact
D261.205.366-01

Pin 1

Gnd

Pin 2

Sig

Pin 3

US

Installation Notes

The PSS- can be connected directly to most control units. Please consider the TCI for the electrical connection of the sensor.

The sensor has a protection for overvoltage, reverse polarity and short-circuit.

Please do not fix the sensor directly to the engine block to avoid undesired strong vibrations.

Each mounting orientation is possible.

Please consider using the adapter F02U.002.711-01.

The sensor meets all EMV, EMC and ESD automotive standards.

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.

Safety Note

The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.

Ordering Information

Pressure Sensor Fluid PSS-140

Order number: 0261.545.053

Pressure Sensor Fluid PSS-260

Order number: 0261.545.040

Pressure Sensor Fluid PSS-420

Order number: 0261.545.136

Pressure Sensor Fluid PSS-600

Order number: 0261.B23.789-07

Accessories

Adapter

Order number: F02U.002.711-01

Dimensions

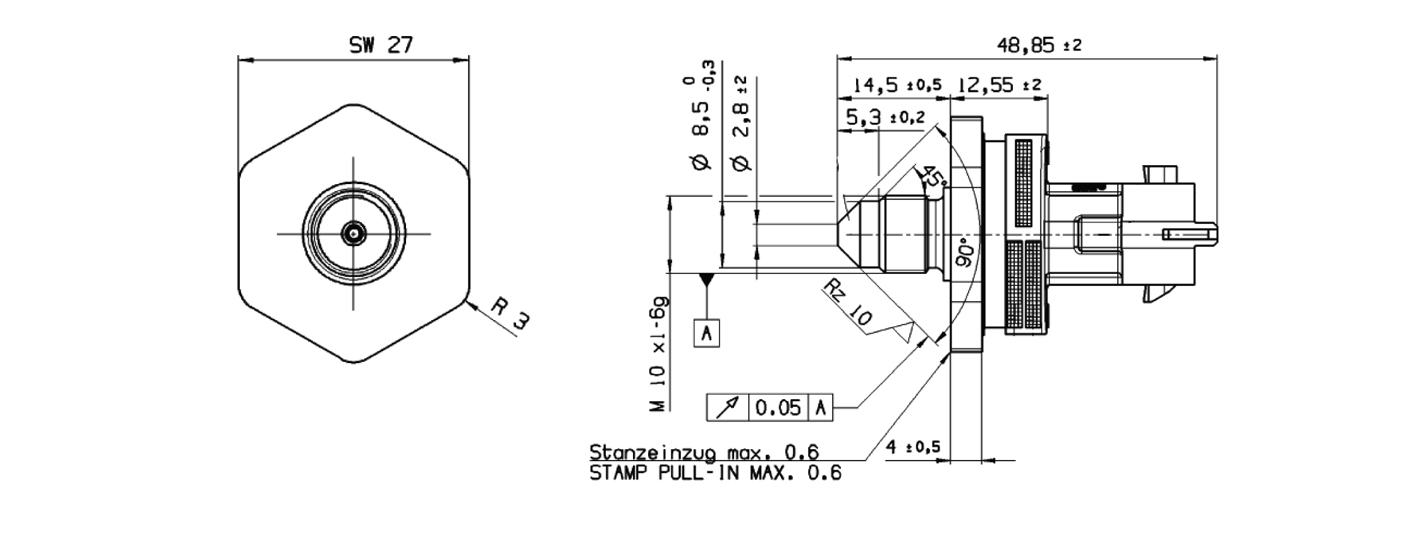

Sensor

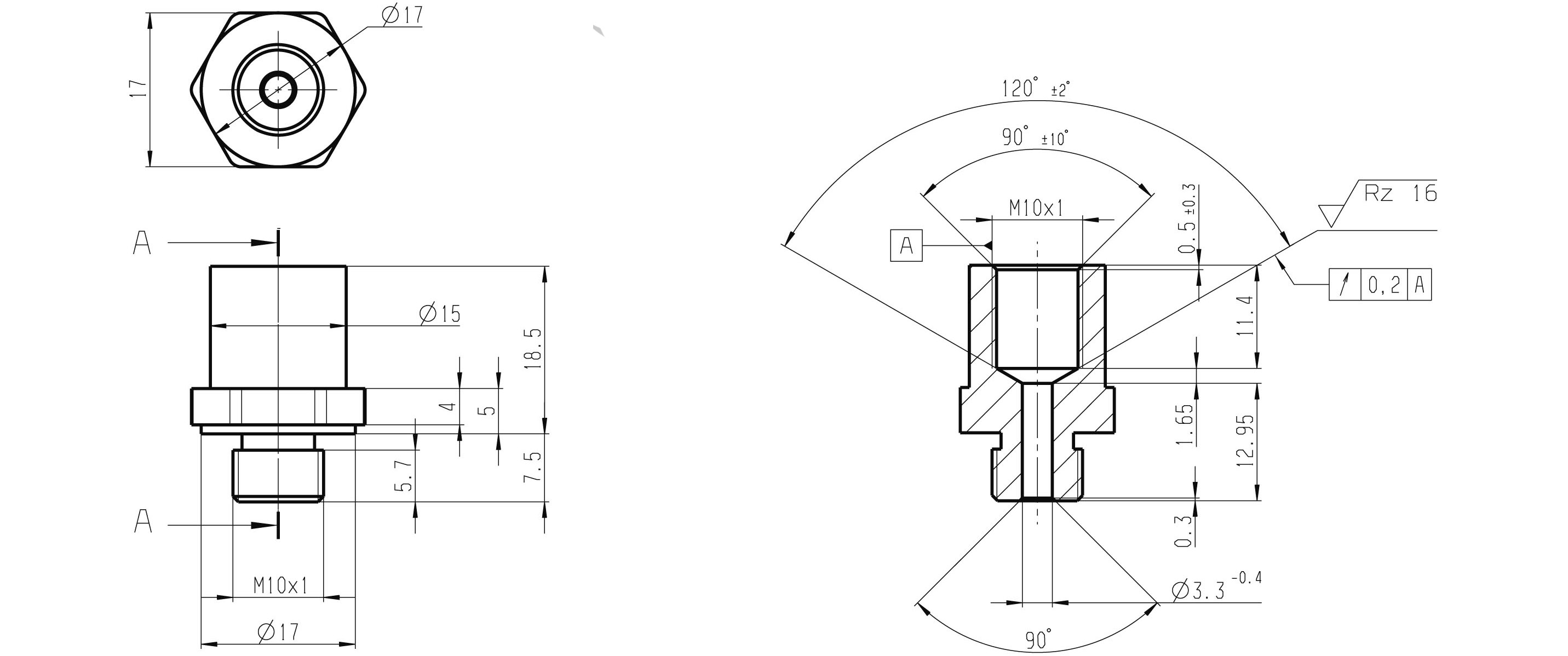

Adapter

Legal Restrictions

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
