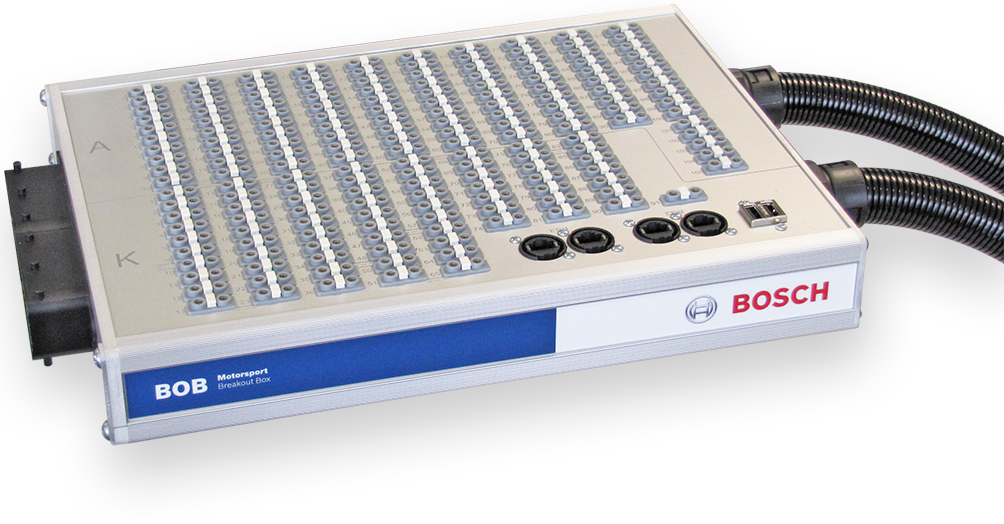

Breakout Box BOB MS 6

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers allow to individually open or close each single connection without removing the jumper. Jacks provide access to all signals for measurement purposes. The box is essential for development and test environments in the lab and vehicle.

This version was especially developed for use with Engine Control Units MS 6.

Features

  • Compact, lightweight housing in low-profile design with high-density packaging
  • Robust 4 mm standard jacks for measuring leads
  • Signal integrity of high-speed data links ensured by product-specific version
  • Standard configurations and fully customized versions available
  • No more lost jumpers due to patented 90° rotatable connectors

Technical Specifications

Mechanical Data

Size

355 x 270 x 50 mm

Weight

4,100 g

4 mm standard jacks for measuring leads

176

Ethernet connectors

4

Ethernet wire

2 x inclusive

USB connectors

2

USB jumper

inclusive

Connectors and Wires

Wire length L

2 x 60 cm

Ordering Information

Breakout Box BOB MS 6

Order number: F 02U V02 294-01
