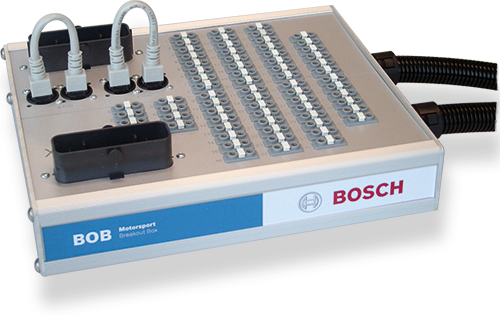

The Breakout Box BOB enables the operator to perform measurements and modify connections during operation. The jumpers facilitate the ability to open and close each individual connection without removing the jumper. All signals can be accessed and measured via the jacking points. The box is essential for development and test environments in the lab and vehicle.
This version was especially developed for use with PowerBox PBX 90.
Downloads
Features
- Optimised packaging facilitates a low-profile design with compact, lightweight housing
- Robust 4 mm standard jacks for measuring leads
- Signal integrity of high-speed data links ensured by product-specific version
- Standard configurations and fully customized versions available
- No more lost jumpers due to patented 90° rotatable connectors
Technical Specifications
Mechanical Data
|
Size |
255 x 220 x 45 mm |
|
Weight |
2,400 g |
|
4 mm standard jacks for measuring leads |
68 |
|
Ethernet connectors |
4 |
|
Ethernet wire |
2 x inclusive |
Connectors and Wires
|
Wire length L |
2 x 60 cm |
Ordering Information
Breakout Box BOB PBX 90
Order number: F02U.V02.292-01
