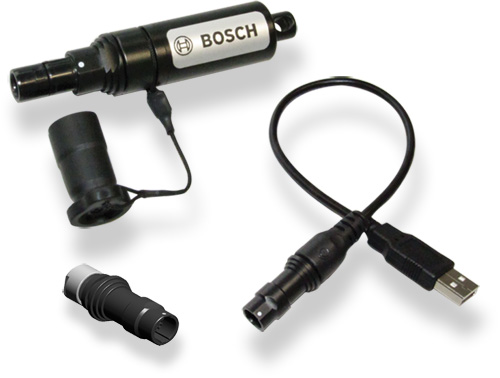

The Kit USB_DATA enables your DDU, data logger or VCU to store data on a USB flash drive. The Kit includes a rugged USB flash drive, an adapter cable to USB-port and a connection socket to the wiring harness. A key number to unlock the USB-port is also part of the Kit.
The rugged USB flash drive is securely mounted within a rugged brass housing designed to provide full protection against extreme environmental conditions. It is IP68 protected and resistant to extreme operating temperatures (-30 to 85°C). The USB flash drive is equipped with a rugged protection cap.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Legal Restrictions
Downloads
Features
- Capacity 2 GB
- Robust brass housing
- High performance push-pull connector
- Compatible with Data Loggers, Displays and VCUs
Application
|
Operating temperature range |
-30 to 85°C |
|
Protection class |
IP68 |
|
Tightening torque of Backnut for connection socket |
1.5 to 2.0 Nm |
|
Max. vibration |
Vibration Profile 3 (see Appendix or www.bosch-motorsport.com) |
Technical Specifications
Mechanical Data
Housing material | Brass |
Weight | 42 g |
Length | 72 mm |
Bore diameter | 15.5 mm |
Electrical Data
Capacity | 2 GB |
Specification | USB 1.1/2.0 |
Data rate | USB 2.0 up to 480 MBit/s |
Connectors and Wires
Pin layout for connection to vehicle loom (see also Dimensions) | |
Pin 1 | Data - |
Pin 2 | +5 V |
Pin 3 | GND |
Pin 4 | Data + |
Content of the Kit
Rugged USB flash drive |
|
Adapter cable to PC USB-Port | |
Mating connector for USB flash drive on car loom side | |
Software license for USB-Port unlocked | |
Installation Notes
The USB flash drive should be fixed on a soft surface to reduce stress. |
Ordering Information
USB_DATA
Order number: F02U.V02.214-01
USB Kit for C 60
Order number: F02U.V00.872-02
Accessories
Rugged USB flash drive
Order number: F02U.V01.342-03
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Connector for wiring harness
Order number: F02U.002.996-01
USB_DATA
Order number: F02U.V02.214-01
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
