CAN Keypad CK-M12

The CAN Keypad CK-M12 allows for simplification of the dashboard by offering 12 buttons and 9 additional wired inputs to be evaluated and transmitted via CAN bus to other devices on the bus. Each button has an individually addressable LED indicating ring that can be used to acknowledge a button press event, indicate status of a device, or alert the driver to a fault condition. No special configuration software is needed, all feedback logic is done by PBX, DDU or ECU. Each keypad is supplied with 15 black inserts, optional insert kits are also available.

Downloads

Features

  • 12 standard buttons with color indicator rings
  • 9 additional digital switch inputs
  • Moveable button inserts
  • CAN input / output

Application

Usage

PBX / DDU / ECU Interface

Temperature range

-40 to 85°C

Technical Specifications

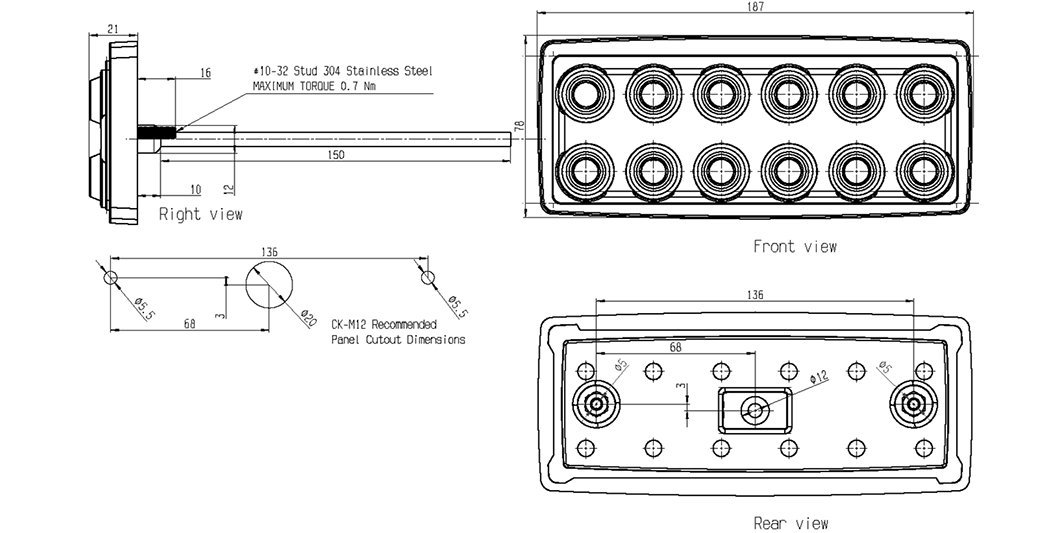

Mechanical Data

Size

78 x 187 x 21 mm

Weight

280 g

Max. vibration

11 ms 30 G peak

Protection Classification

IP68

Electrical Data

Power supply Vs

9 to 32 V

Average current draw

100 mA

Max current draw

250 mA

Characteristics

Signal output

CAN

CAN transmit rate

100 Hz*

CAN baud rate

1 Mbaud*

TX ID

0x800*

RX ID

0x801*

TX Data

1 bit status for each input

RX Data

4 bit integer for each indicator color, 4 bit integer for brightness

* Custom CAN IDs / baud Rate Optional Upon Request

Note: CK-M12 DBC file available for CAN configuration

Connectors and Wires

CK-M12 Termination

Flying Lead 24AWG

Recommended Connectors

CK-M12

AS610-35PN

Mating

AS110-35SN

Wire Identification

Wire

Function

Red

12/24 V Power

Black

Ground

Yellow

CAN high (CANH)

Green

CAN low (CANL)

White, Black Trace

Digital Input 1 activated by Ground

White, Brown Trace

Digital Input 2 activated by Ground

White, Red Trace

Digital Input 3 activated by Ground

White, Orange Trace

Digital Input 4 activated by Ground

White, Yellow Trace

Digital Input 5 activated by Ground

White, Green Trace

Digital Input 6 activated by Ground

White, Blue Trace

Digital Input 7 activated by Ground

White, Purple Trace

Digital Input 8 activated by Ground

White, Grey Trace

Digital Input 9 activated by Ground

Insert Kits

Insert Road Race Kit

A/C

ABS

Alarm Reset

Anti-Lag

Arrow x 4

Brake Spray

Boost Decrease

Boost Increase

Brightness Down

Brightness Up

Close Menu

Cool Suit

Cooling Fan

Day/Night Mode

Drink

Flash Hi Beam

Fuel Reserve

Fuel Reset

Full Course Yellow

Function Toggle

Gearbox Emergency

Hazard Flasher

Heated Windshield

Helmet Fan

High Beam

Horn

Launch

Low Beam

Map Down

Map Up

Neutral

Open Menu

Page Down

Page Up

PDU Reset

Pit Switch

Power

Power Steering Reset

Pump Out

Push to Pass

Radiator Spray

Rain Light

Reset

Reverse

Select

Starter

Traction Control Down

Traction Control Up

Wet Mode

Windshield Spray

Windshield Wiper

Insert Drag Race Kit

A/C

Alarm Reset

Anti-Lag

Arrow x 4

Boost Decrease

Boost Increase

Brightness Down

Brightness Up

Burnout

Close Menu

Cooling Fan

Day/Night Mode

Function Toggle

Hazard Flasher

High Beam

Horn

Launch

Line Lock

Low Beam

Map Down

Map Up

Nitrous Arm

Nitrous Purge

Open Menu

Page Down

Page Up

PDU Reset

Power

Pump Out

Push to Pass

Reset

Select

Starter

Traction Control Down

Traction Control Up

Transmission Brake

Windshield Spray

Windshield Wiper

Insert Alpha/Numeric Kit

A

V

B

W

C

X

D

Y

E

Z

F

!

G

-

H

+

I

0

J

1

K

2

L

3

M

4

N

5

O

6

P

7

Q

8

R

9

S

10

T

11

U

12

Installation Notes

Installation on flat surface recommended

Bolt size

#10-32

Tightening Torque

0.7 +/- 0.1 Nm

Ordering Information

CAN Keypad CK-M12

Order number: F02U.V0U.328-04

Accessories

Insert Road Race Kit

Order number: F02U.B0U.022-01

Insert Drag Race Kit

Order number: F02U.B0U.023-01

Insert Alpha/Numeric Kit

Order number: F02U.B0U.024-01

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
