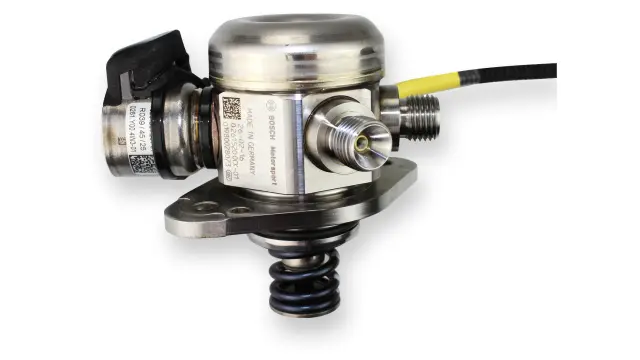

HP Fuel Pump HDP 5 EVO 4

HP Fuel Pump HDP 5 EVO 4

The HDP 5 EVO 4 is a further development of the proven HDP 5, offering increased reliability, state-of-the-art robustness features, and additional detailed innovations. Flange robustness has been improved through a new design concept, and fuel efficiency has been optimized.

We ensure full commitment to traceability, compliance, and quality.

Product Highlights

Features

  • Max. 1.1 cm3/rotcam
  • Up to 350 bar
  • 830 g
  • Integrated Flow Control Valve
  • Internal Pressure Relief Valve

Downloads

Literature

Product Details

For high pressure manifold injection or gasoline direct injection
Mechanical Data
Mechanical Data
Body design
Series
Mechanical Data
Flow capacity and max. engine speed
Depending on cam profile
Mechanical Data
Nominal pressure Standard version
Up to 350 bar
Mechanical Data
Weight
Approx. 830 g
Mechanical Data
Supply pressure
2 to 9 bar
Mechanical Data
Operating temperature
-40 to 120°C
Mechanical Data
Storage temperature
-40 to 70°C
Mechanical Data
Compatible fuels
Unleaded fuels, low Ethanol blend fuels E0 to E15 (RSG-E10)
Mechanical Data
Fuel temperature
80°C, short term 130°C
Mechanical Data
Max. vibration
600 m/s2 up to 4 kHz on pump body
Connectors and Wires
Connectors and Wires
Motorsport wire + open end

Further Information

Mounting on cylinder head or adapter flange
Mounting on cylinder head or adapter flange
Available cam profiles on request
Mounting on cylinder head or adapter flange
Select the cam profile on fuel consumption requirements.
Mounting on cylinder head or adapter flange
Avoid interference with FCV and hydraulic connections at flange orientation.
Mounting on cylinder head or adapter flange
Avoid interference with flange at electrical connector orientation.
Mounting on cylinder head or adapter flange
Specify the electrical connector design and the wire length with your order.
Mounting on cylinder head or adapter flange
The customer must give a production approval.

HP Fuel Pump HDP 5 EVO 4
Order number: F02U.V03.681-01

Accessories

Roller tappet (split needle)
Order number: F02U.V01.995-01
