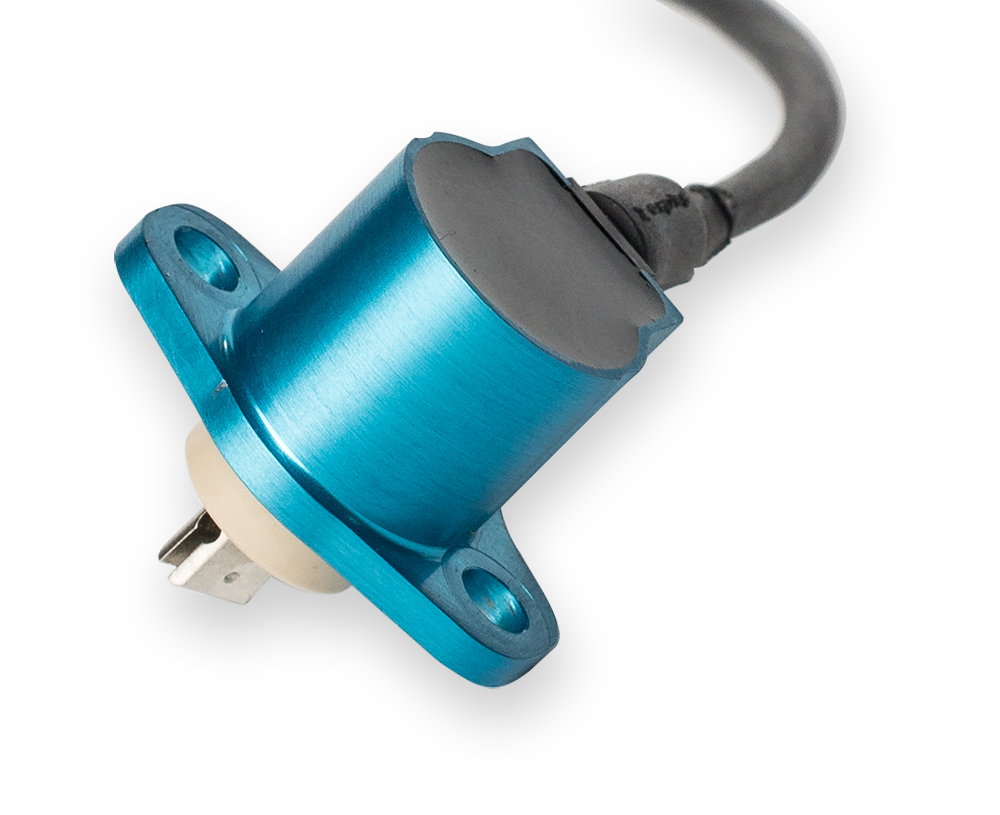

Rotary Position Sensor RPS-F

Rotary Position Sensor RPS-F

This sensor is designed to measure rotational movement of throttle position.

The electrical circuit is designed with a magnetic rotary sensor using a Hall element and digital signal processing; sensor output is ratiometric. The angular position is provided by a two pole magnet integrated in the sensor shaft.

The main benefit of this sensor is its contactless Hall effect technology and its robust design for motorsport applications which includes fully redundant power and ground.

Product Highlights

Features

  • Rotational movement measurement
  • Hall effect technology
  • Measurement range: 0 to 360° possible
  • Analog output 0.2 to 4.8 V
  • Dual output, fully redundant possible

Downloads

Literature

Product Details

Application
0 to 360° possible
Application
Operating temperature range
0 to 360° possible
0 to 150°C
Application
Max. vibration
0 to 360° possible
200 m/s2at 5 to 2,000 Hz
Mechanical Data
Mechanical Data
Weight w/o wire
< 36 g
Mechanical Data
Protection class
IP58
Mechanical Data
Mounting
2 x M4 screw
Mechanical Data
Lifetime
5 x 106operations of ±65°
Mechanical Data
Housing
Aluminum
Electrical Data
Electrical Data
Power supply US
5 ± 0.5 V regulated
Electrical Data
Max. overvoltage
24 V
Electrical Data
Half voltage tolerance
± 2°
Electrical Data
Supply current
< 12.5 mA
Electrical Data
Resolution
< 0.1°
Electrical Data
Output voltage range
Ratiometric analog
Electrical Data
Output load
> 10 kOhm
Characteristic
Characteristic
Max. rotation speed
600RPM
Characteristic
Temp. coefficient
± 0.008° Rotation/°C
30°C nominal
Characteristic
Direction of rotation
Both
Characteristic
Redundancy
Yes
.
Flying lead and Wires
Flying lead and Wires
Red
US1
Flying lead and Wires
Blue
Gnd 1
Flying lead and Wires
White
Sig 1
Flying lead and Wires
Orange
US2
Flying lead and Wires
Green
Gnd 2
Flying lead and Wires
Yellow
Sig 2
Flying lead and Wires
Sleeve
DR-25
Flying lead and Wires
Wire size
AWG 26
Flying lead and Wires
Wire length L
100 cm
.

Further Information

The products of the RP series can be connected directly to most control units.
The products of the RP series can be connected directly to most control units.
The sensor is designed with contactless Hall effect technology.
The products of the RP series can be connected directly to most control units.
Any mounting orientation is possible.
The products of the RP series can be connected directly to most control units.

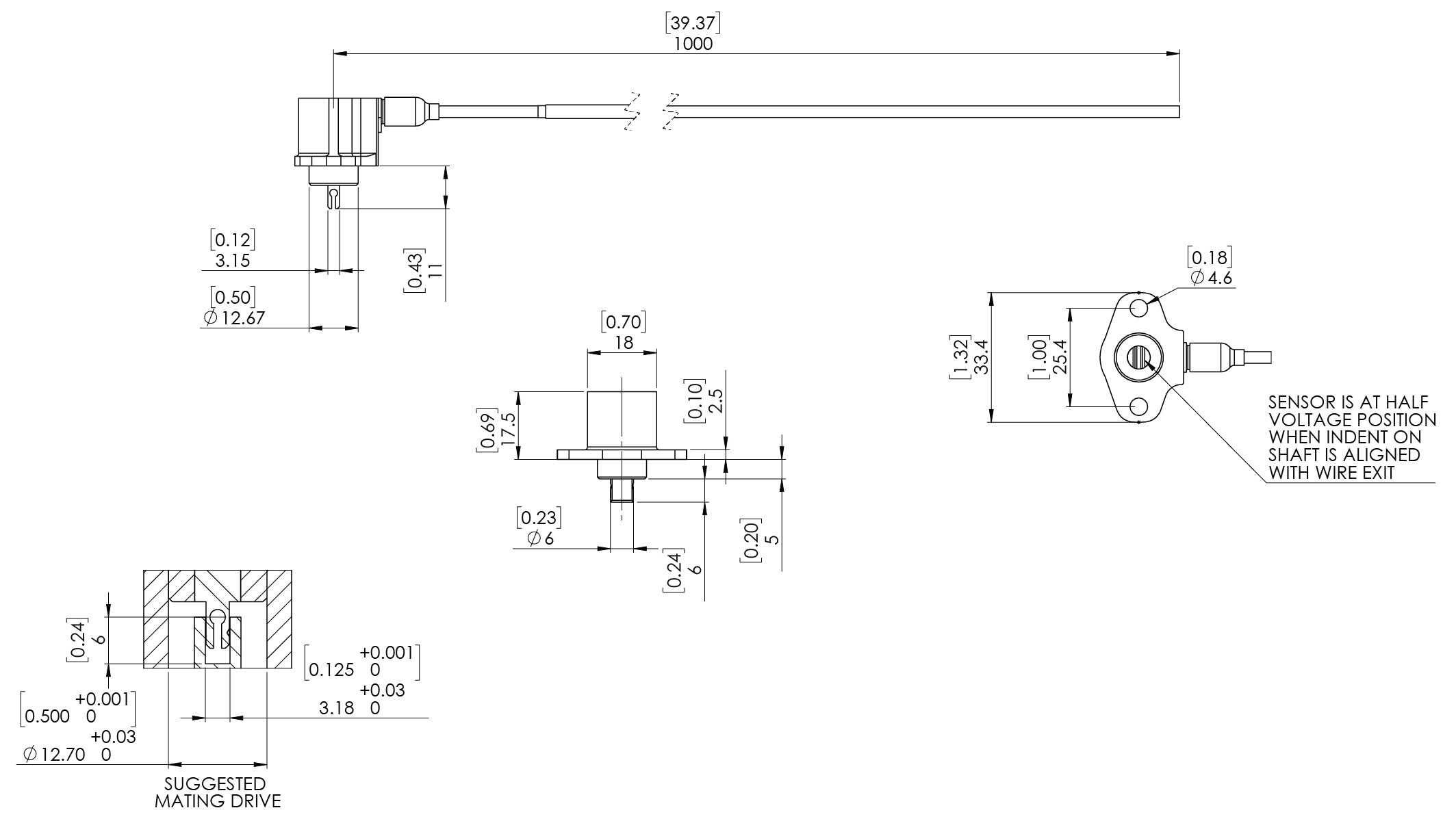

Sensor is at mid point of electrical angle when shaft and wire exit are aligned as shown in the offer drawing.
The products of the RP series can be connected directly to most control units.
Please find further application hints in the offer drawing at our homepage.
Safety Note
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system.
Fulfilled Legal Standards/Legal Requirements
Fulfilled Legal Standards/Legal Requirements
EMC Requirement
UNECE10

Rotary Position Sensor RPS-F
Single output, 360° range
Order number: F02U.V0U.400-02

Rotary Position Sensor RPS-F

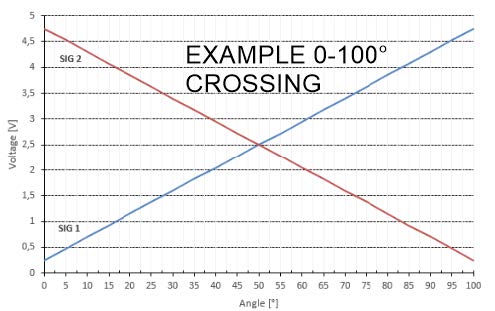

Dual output, 100° range, crossing signals (throttle)
Order number: F02U.V0U.401-02

Rotary Position Sensor RPS-F
Dual output, 40° range, second signal 50 % of first (pedal)
Order number: F02U.V0U 402-02

Rotary Position Sensor RPS-F
Dual output, 100° range, second signal 50 % of first (pedal)
Order number: F02U.V0U.403-02
