Wheel Speed Signal Splitter

Bosch Motorsport has developed a wheel speed module that converts the Bosch DF11 (differential dual hall sensors) signals to a signal that can be processed by peripheral engine controlling devices and data recording systems. The adapter can be plugged into any Bosch ABS M4 loom.

The operation principle is that it forwards the sensor information to the ABS. In addition it converts the speed info into a digital signal. The type of output is open collector. The connected device needs to contain an internal pull up resistor of 2.15 kOhm to 12 V.

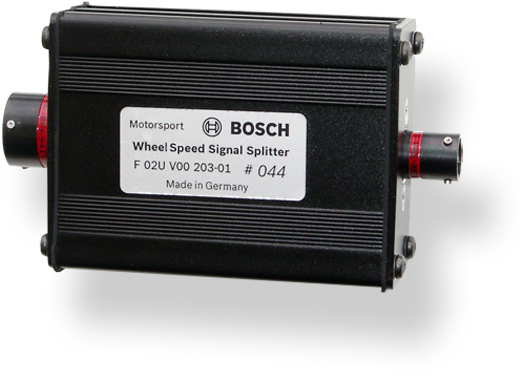

The interface is available in two different housings supporting one connector or two connectors (see photo). The single connector type is used if the signal is fed back into an especially pre-defined ABS loom which connects e.g. to the original chassis loom. The double connector type is used if the speed signal is broadcast to the peripheral device via a separate loom.

The wheel speed signal splitter is designed to be used in combination with the Bosch Motorsport ABS system. Due to safety reasons it is not designed for usage in combination with other ABS systems.

Features

  • ABS Wheel Speed Sensor Interface
  • Lightweight Aluminum Housing

Application

Application

ABS wheel speed sensor interface

Compatible sensor type

Bosch DF 11

Operating temperature range

-20 to 85°C

Storage temperature range

-20 to 85°C

Technical Specifications

Mechanical Data

Weight

53 g

Size (Single connector type)

101.8 x 63.5 x 30.3 mm

Size (Double connector type)

112.1 x 63.5 x 30.3 mm

Max. vibration

Vibration profile 1 (see Appendix or www.bosch-motorsport.com)

Electrical Data

Power supply

12 V

Max. power supply (1 min)

25 V

Connectors

Connector 1 (wide)

AS212-35PN

Mating connector AS612-35SN

F 02U 000 443-01

Connector 2 (small)

AS208-35PN

Mating connector AS608-35SN

F 02U 000 430-01

Pinout Connector 1 (wide)

Pin

Description for one connector

Description for two connectors

1

Supply to DF11 (RR)

Supply to DF11 (RR)

2

Signal from DF11 (RR)

Signal from DF11 (RR)

3

Supply to DF11 (RL)

Supply to DF11 (RL)

4

Signal from DF11 (RL)

Signal from DF11 (RL)

5

Supply to DF11 (FR)

Supply to DF11 (FR)

6

Signal from DF11 (FR)

Signal from DF11 (FR)

7

Supply to DF11 (FL)

Supply to DF11 (FL)

8

Signal from DF11 (FL)

Signal from DF11 (FL)

9

Signal to ABS (FL)

Signal to ABS (FL)

10

DF11 supply from ABS (FL)

DF11 supply from ABS (FL)

11

Signal to ABS (FR)

Signal to ABS (FR)

12

DF11 supply from ABS (FR)

DF11 supply from ABS (FR)

13

Signal to ABS (RL)

Signal to ABS (RL)

14

DF11 supply from ABS (RL)

DF11 supply from ABS (RL)

15

Signal to ABS (RR)

Signal to ABS (RR)

16

DF11 supply from ABS (RR)

DF11 supply from ABS (RR)

17

Open collector Signal to ECU (FL)

Not used

18

Open collector Signal to ECU (FR)

Not used

19

UBat 12V

UBat 12V

20

Open collector Signal to ECU (RL)

Not used

21

Open collector Signal to ECU (RR)

Not used

22

ECU Ground

Not used

Pinout Connector 2 (small)

Pin

Description for one connector

Description for two connectors

1

n.a.

Open collector Signal to ECU (FL)

2

n.a.

Open collector Signal to ECU (FR)

3

n.a.

Open collector Signal to ECU (RL)

4

n.a.

Open collector Signal to ECU (RR)

5

n.a.

Not used

6

n.a.

ECU Ground

Ordering Information

Single Connector Type



Order number: F 02U V00 335-03

Double Connector Type

Order number: F 02U V00 203-03

Dimensions

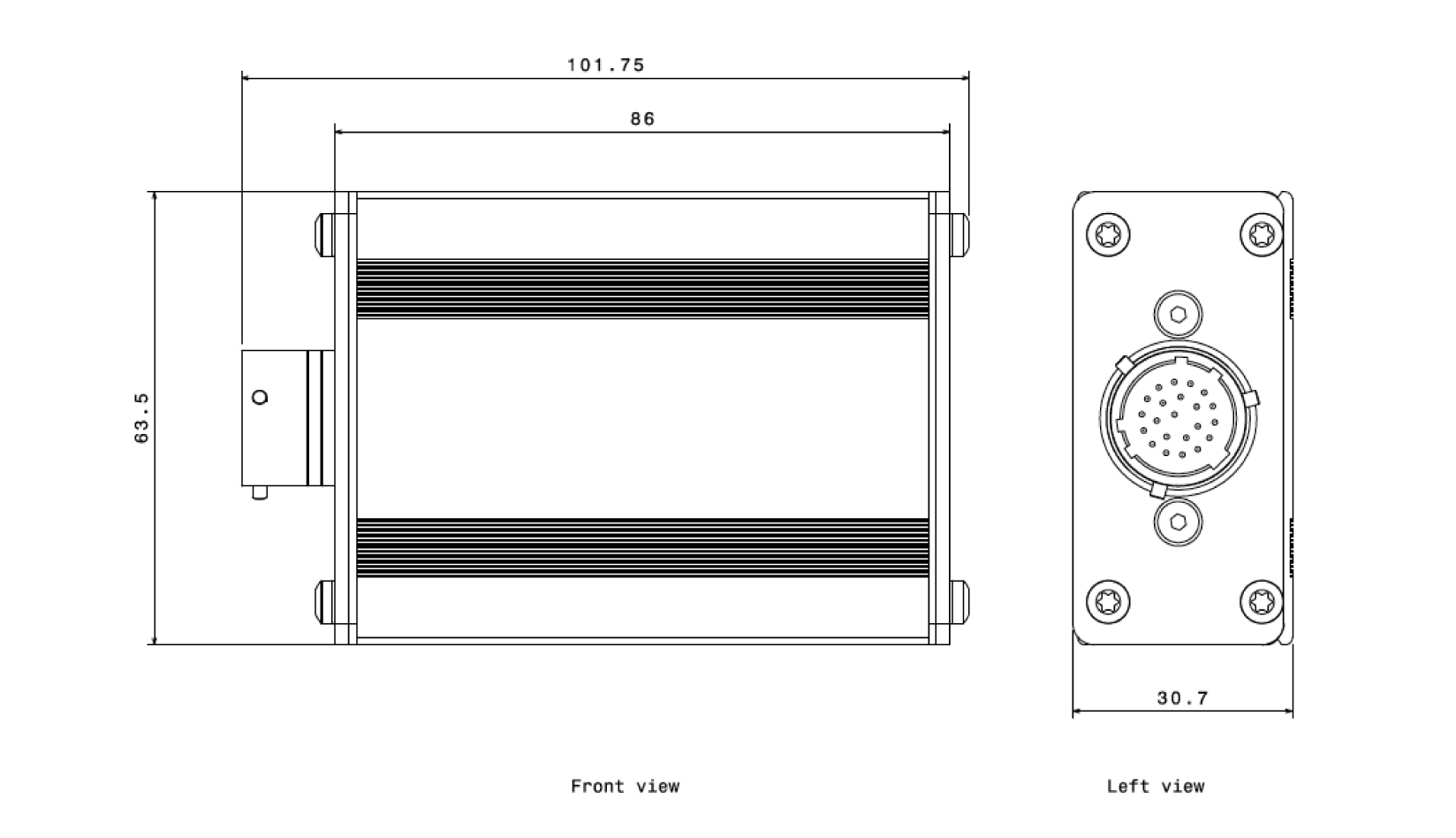

Single Connector Type Housing

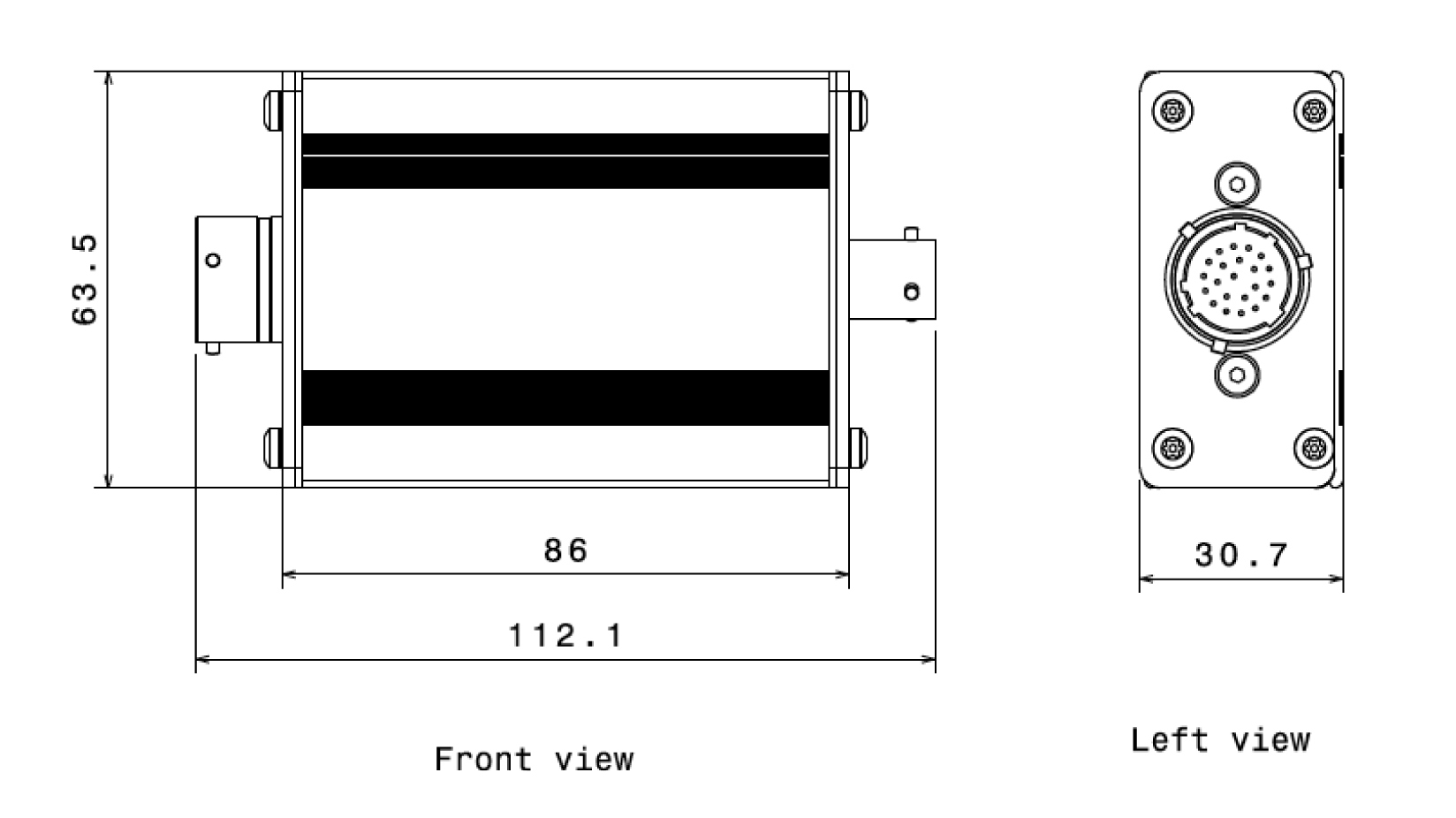

Double Connector Type Housing

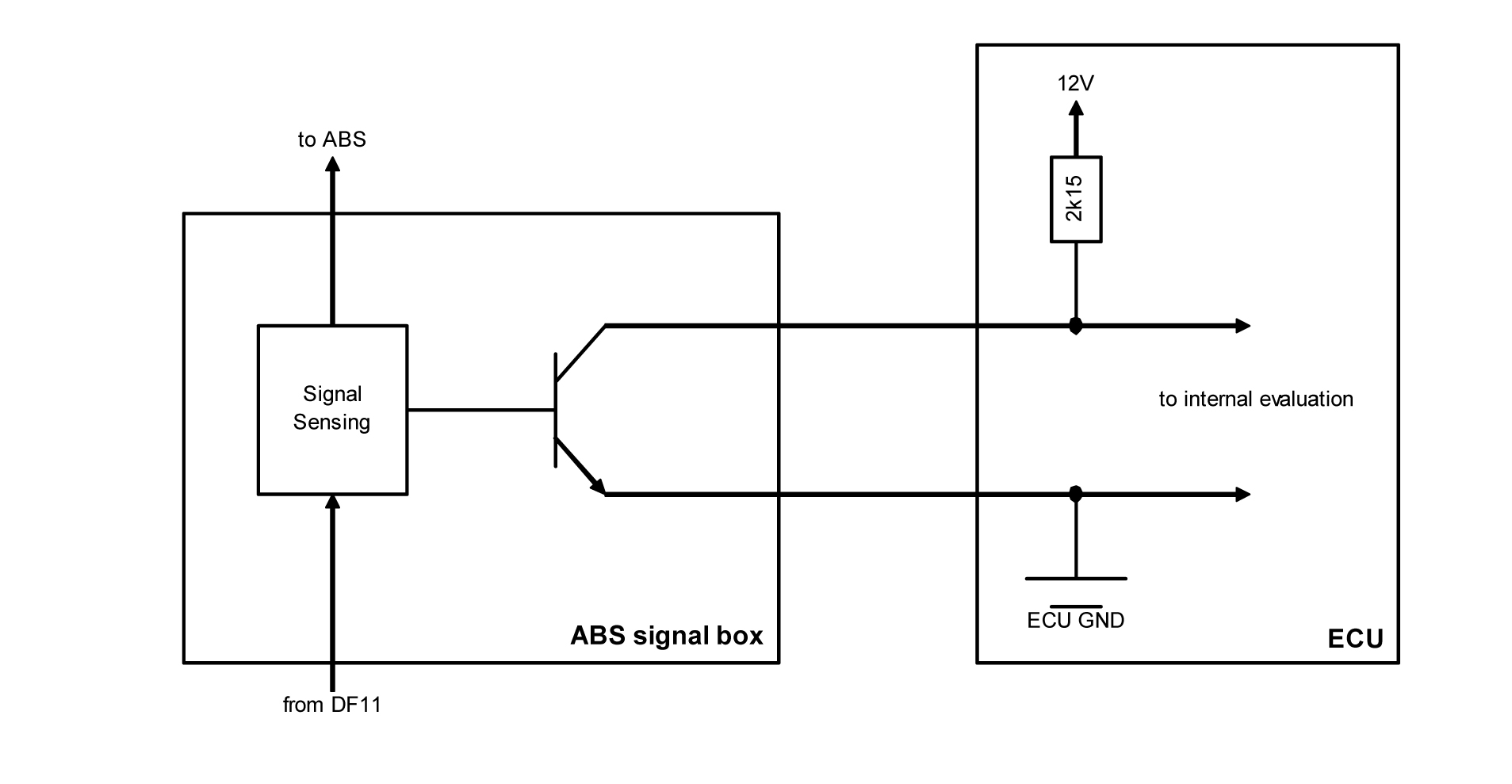

Connection Scheme
