Display DDU 10

The Display DDU 10 integrates a programmable full colour dashboard display with a data logging system for motorsport applications. Additional input devices can be connected via Ethernet, CAN buses, and RS 232.

Data Analysis Software WinDarab is available free of charge as “WinDarab V7 free” on our website. A basic logging function of 100 channels with recording of 50 ms (4 GB) is always included. The logger can be upgraded to full logging performance (max. 1 ms). In addition, a 2nd logging partition of 4 GB can be activated.

With the DDU 10, a completely new library of graphical elements for the individual design of display pages was implemented and an all-new user interface menu has been developed for the device. A configurable input activates the menu structure and the user can reset for example laptime, fuel consumption and many more, without having to connect a laptop to the DDU. The user can also install own graphics, pictures etc. on the 12 freely configurable display pages. For quick data transfer from the car, e.g. during pit stop, data copy to a USB stick is available as an option.

Downloads

Features

  • Features user interface menu
  • Features display element design generator
  • 10 top-LEDs and 5 side-LEDs on both sides
  • Supports GPS laptrigger, pre-dated lap time etc.
  • Page change based on events possible

Application

Display

  • 7” graphic color display
  • 12 user configurable display pages
  • 20 multicolor freely configurable (RGB) LEDs

Resolution

800 x 480 pixel

Supported image file formats

PNG, BMP, JPG, GIF

Processor

667 MHz Dual Core

Converters

10 kHz 12 bit AD converters with digital low pass filter

Internal power source

Li/Ion capacitor

Configurable math channels



User configurable CAN in/out messages

Up to 256 IDs (128 in and out)

Online data compression



Internal logger

  • 4 GB memory on partition 1 enabled
  • 100 channels enabled
  • 50 ms Sampling rate enabled
  • FULL_LOG_1 (1,500 channels/1 kHz sampling rate on partition 1) optional
  • FULL_LOG_2 (4 GB memory on partition 2) optional

Logging rates

  • Usage of all features: 600 kB/s
  • Primary logging use case: 800 kB/s
  • Logging data download rate: up to 4 MB/s

Ambient light sensor





Technical Specifications

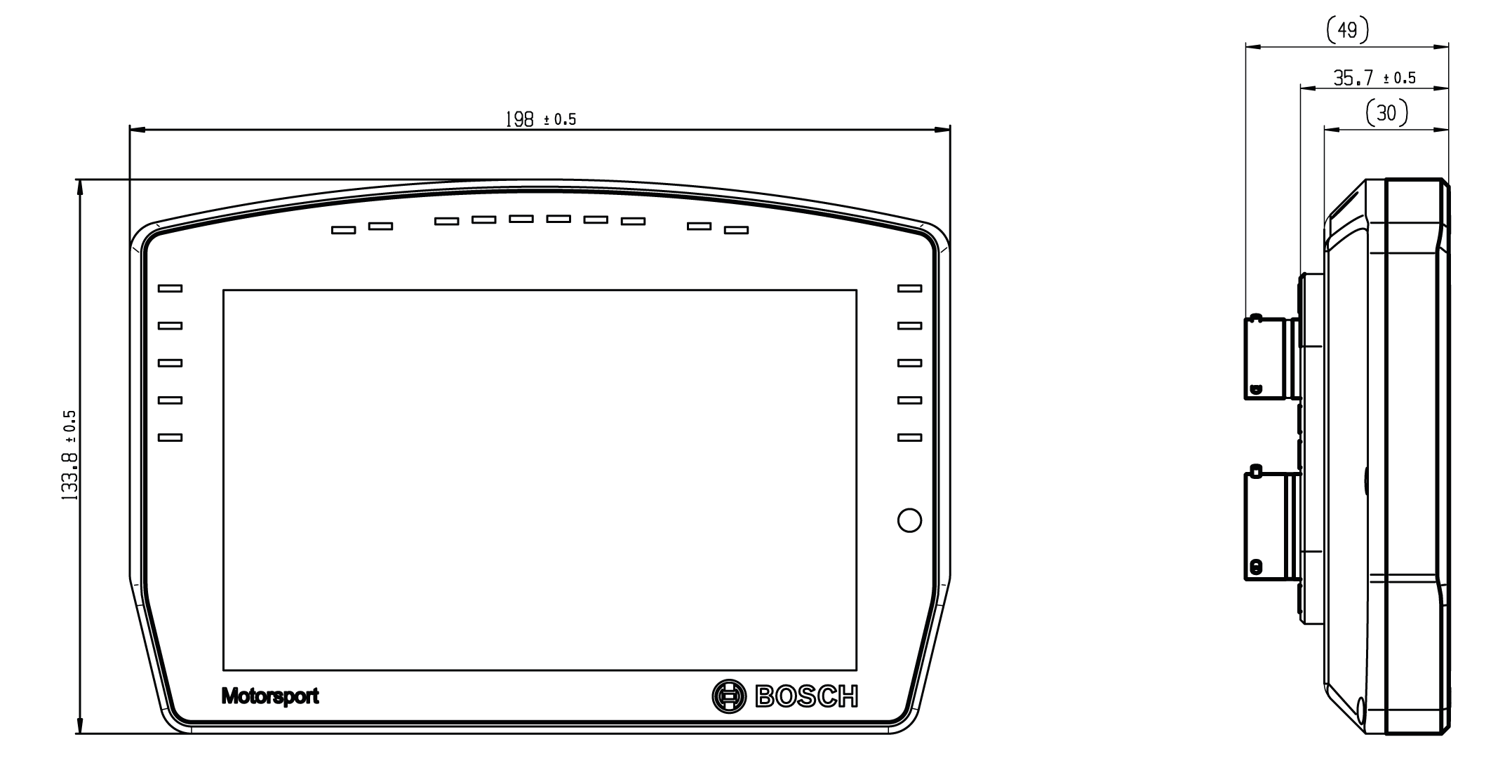

Mechanical Data

Size

198 x 134 x 35 mm

Weight

875 g

Protection classification

IP67

Operating temperature internal

-20 to 85°C

Max. vibration

Vibration profile 1 (see Downloads or bosch-motorsport.com)

Electrical Data

Supply voltage

6 to 18 V

Current consumption (w/o sensor supply)

2 A (at 12 V)

Inputs

4 x analog channels, plus 12 optional

0 to 5 V input range

12 bit resolution



Switchable pull up resistors for all analog inputs

4 x Hall-effect or DF11 wheel speed inputs, switchable

Sensor Supplies and Screens

2 x Sensor supply 5 V ± 1 % (250 mA)

1 x Sensor supply 10 V ± 1 % (250 mA)

1 x Sensor supply U_Bat (250 mA)

4 x Sensor ground

Environment

External switch for page selection, 12 steps

B 261 209 658-01

External switch for brightness adjustment or page selection, 6 steps

B 261 209 659-01

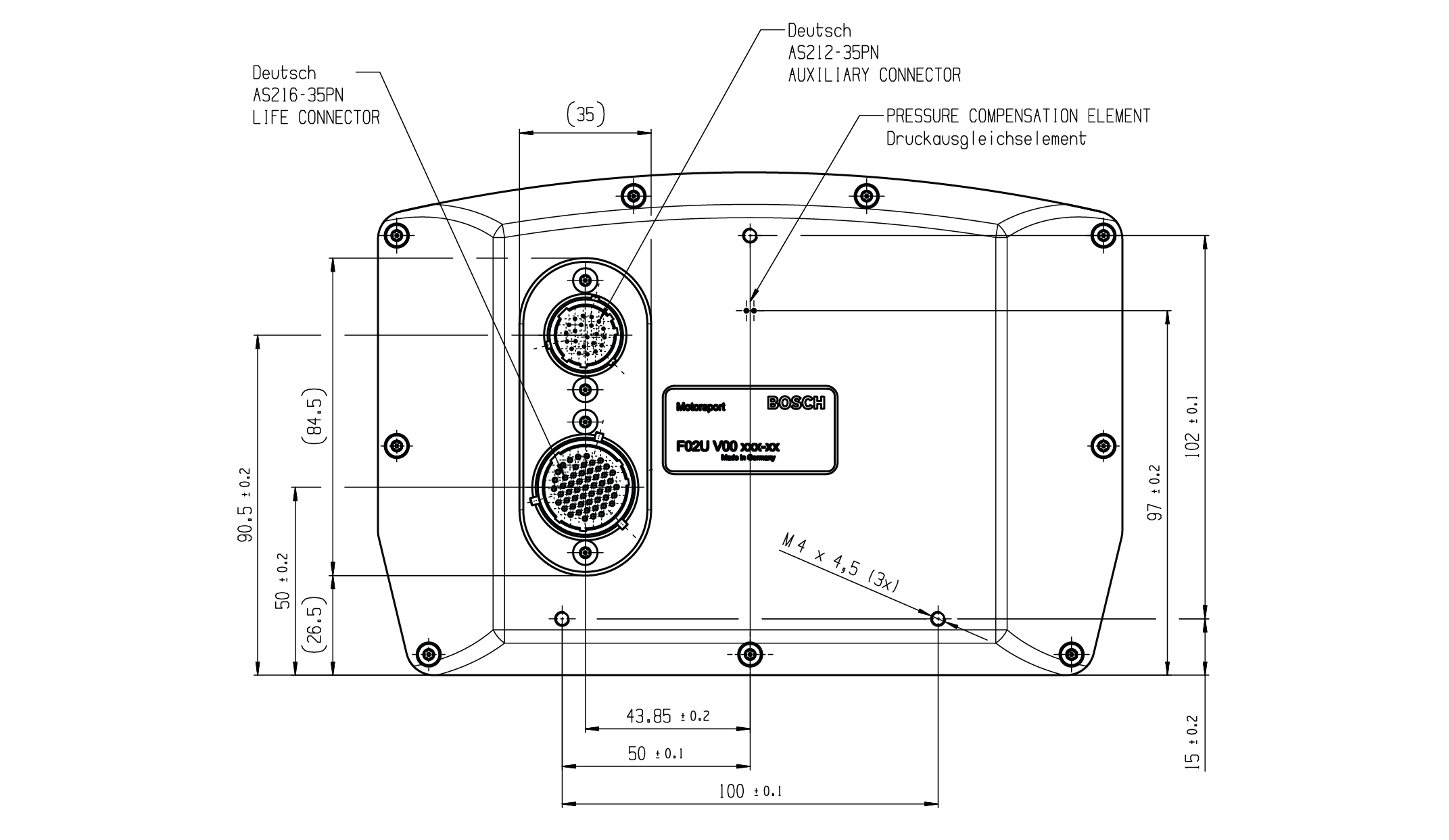

Connectors and Wires

LIFE connector on display
AS216-35PN



Mating connector
AS616-35SN

F02U.000.466-01

Auxiliary connector on display
AS212-35PN



Mating connector
AS612-35SN

F02U.000.443-01

Pin Configuration

LIFE connector

Pin

Name

Comment

Status

1

KL_31



Incl.

2

KL_15



Incl.

3

KL_30



Incl.

4

Rev_In_3

Hall or DF11 switchable

Incl.

5

Rev_In_1

Hall or DF11 switchable

Incl.

6

KL_31



Incl.

7

CAN_2_L

CAN speed selectable

Incl.

8

Ethernet_2_TXP



Incl.

9

Ethernet_2_TXN



Incl.

10

Sens_Power_12V

over current protected

Incl.

11

Rev_In_4

Hall or DF11 switchable

Incl.

12

Rev_In_2

Hall or DF11 switchable

Incl.

13

Laptrigger_In



Incl.

14

CAN_2_H

CAN speed selectable

Incl.

15

CAN_1_H

CAN speed selectable

Incl.

16

Ethernet_2_RXP



Incl.

17

Sens_Gnd_4

fused

Incl.

18

Sens_Power 5V

over current protected

Incl.

19

ANA_IN_3

3.01 kOhm switchable

Incl.

20

ANA_IN_4

3.01 kOhm switchable

Incl.

21

Time_Sync

connection to Bosch ECU

Incl.

22

CAN_1_L

CAN speed selectable

Incl.

23

Ethernet_screen



Incl.

24

Ethernet_2_RXN



Incl.

25

Sens_Gnd_3

fused

Incl.

26

Sens_Power 5V

over current protected

Incl.

27

ANA_IN_7

3.01 kOhm switchable

Opt.

28

ANA_IN_1

3.01 kOhm switchable

Incl.

29

USB_Device_DP

to Bosch USB stick

Opt.

30

RS232_TX_Telemetry



Incl.

31

Ethernet_1_TXP



Incl.

32

Sens_Gnd_2

fused

Incl.

33

Sens_Power_10V

over current protected

Incl.

34

ANA_IN_8

3.01 kOhm switchable

Opt.

35

ANA_IN_10

3.01 kOhm switchable

Opt.

36

USB_Device_Gnd

to Bosch USB stick

Opt.

37

USB_Device_DN

to Bosch USB stick

Opt.

38

RS232_RX_Telemetry

e.g. GSM telemetry

Incl.

39

Ethernet_1_TXN



Incl.

40

Sens_Gnd_1

fused

Incl.

41

ANA_IN_11

3.01 kOhm switchable

Opt.

42

ANA_IN_9

3.01 kOhm switchable

Opt.

43

RS232_TX_GPS



Incl.

44

ANA_IN_16

3.01 kOhm switchable

Opt.

45

USB_Device_Power

to Bosch USB stick

Opt.

46

Ethernet_1_RXP



Incl.

47

ANA_IN_12

3.01 kOhm switchable

Opt.

48

ANA_IN_6

3.01 kOhm switchable

Opt.

49

ANA_IN_2

3.01 kOhm switchable

Incl.

50

ANA_IN_13

3.01 kOhm switchable

Opt.

51

ANA_IN_15

3.01 kOhm switchable

Opt.

52

Ethernet_1_RXN



Incl.

53

ANA_IN_5

3.01 kOhm switchable

Opt.

54

RS232_RX_GPS

for GPS sensor input

Incl.

55

ANA_IN_14

3.01 kOhm switchable

Opt.





Auxiliary connector

Pin

Name

Comment

Status

1



Unused



2



Unused



3



Unused



4



Unused



5



Unused



6



Unused



7



Unused



8



Unused



9

Ethernet_3_TXP



Incl.

10

Ethernet_3_RXP



Incl.

11

Ethernet_3_RXN



Incl.

12

CAN_4_H



Opt.

13



Unused



14



Unused



15



Unused



16



Unused



17



Unused



18

Ethernet_screen



Incl.

19

Ethernet_3_TXN



Incl.

20

CAN_4_L



Opt.

21

CAN_3_H



Opt.

22

CAN_3_L



Opt.

Communication

CAN interfaces

2 standard,
plus 2 optional

Ethernet 100BaseT

3

Laptrigger input

1

RS232

Telemetry, GPS

Configuration via RaceCon

Over Ethernet or MSA-Box II

CCP-Master, data acquisition from ECU that support CAN calibration protocol (optional)

Installation Notes

Maintenance Interval: 220 h or a maximum of two years

This product may contain open source software. Information about license terms and other obligations is given in the manual.

Ordering Information

Display DDU 10

Order number: F02U.V02.659-03

Software Options

CCP/XCP_MASTER

Order number: F02U.V02.213-01

FULL_LOG_1

Order number: F02U.V02.304-01

FULL_LOG_2

Order number: F02U.V02.305-01

IO_EXTENS

Order number: F02U.V02.205-01

DATA_USB

Order number: F02U.V03.476-01

Accessories

CAN Keypad CK-M12

Order number: F02U.V0U.328-04

Vehicle Loom Basic

Order number: F02U.V02.735-01

Bench Loom

Order number: F02U.V02.349-01

Rugged USB flash drive

Order number: F02U.V01.342-03

Connector for USB flash drive on car loom side

Order number: F02U.002.996-01

Adapter cable to PC USB-Port

Order number: F02U.V01.343-01

Upgrades

CCP/XCP_MASTER

Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol, XCP over Ethernet (UDP) or XCP via CAN.
(ASAP2 file from ECU manufacturer required)

FULL_LOG_1

1,500 channels/1 kHz sampling rate on partition 1

FULL_LOG_2

4 GB memory on partition 2

IO_EXTENS

Additional 12 analog inputs and 2 CAN channels

DATA_USB

Data copy to USB flash drive

ABSDIAG

Upgrade Onboard Diagnostic Package ABS M5

  • Enables functionality like error memory read and erase, and repair bleed from UIM menu in display

Legal Restrictions

The sale of this product in Mexico is prohibited.

Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
