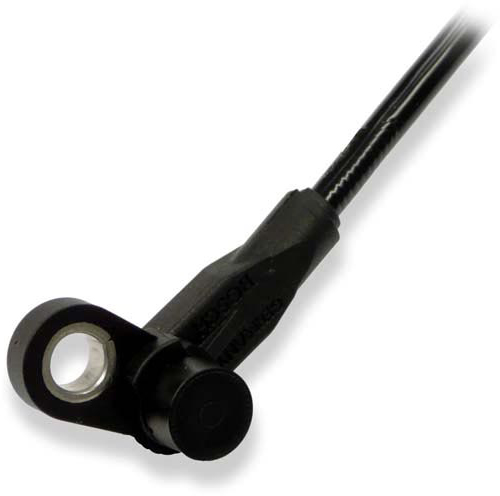

This sensor is designed for incremental measurement of rotational speed (e.g. camshaft or wheel speed).
Due to the rotation of a ferromagnetic target wheel in front of the Mini-HA-P, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal.
The main feature and benefit of this sensor is the combination of a high quality production part and robust design with a very small housing.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Legal Restrictions
Downloads
Features
- Max. frequency: ≤ 10 kHz
- Air gap: 0.2 to 1.0 mm
- Bore diameter: 11.5 mm
- Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
- Weight w/o wire: 20 g
Application
Application |
Speed |
Max. frequency |
≤ 10 kHz |
Target wheel air gap |
0.2 to 1.5 mm |
Temperature range |
-40 to 150°C |
Output circuit |
Open collector for 1 kOhm |
Output type |
Active low |
External magnetic fields |
≤ 0.3 mT |
Max. vibration |
1,200 m/s2 at 10 Hz to 2 kHz |
Technical Specifications
Variations
Connector | ASL606-05PC-HE | 1234.482.092 |
Mating connector | ASL006-05SC-HE | F02U.B00.555-01 |
Pin 1 | US | US |
Pin 2 | Gnd | Sig |
Pin 3 | Sig | Gnd |
Pin 4 | Nc | - |
Pin 5 | Nc | - |
Mechanical Data
Weight w/o wire | 19.2 g |
Mounting | With screw 1 x M6 |
Bore diameter | 11.5 mm |
Installation depth L2 | 9 mm |
Tightening torque | 8 Nm |
Electrical Data
Power supply | 5 to 18 V |
Current IS | 10 mA |
Characteristic
Accuracy repeatability of the falling edge of tooth | < 3 % (≤ 6 kHz) |
Signal output | 0.4 V to < US |
Environment
Target wheel diameter D | 162.34 mm |
Thickness t | 12.5 mm |
Width of teeth b1 | 3.8 mm |
Width of gap b2 | 4.7 mm |
Width of sync. gap b3 | 20.79 mm |
Depth of teeth h | 3.4 mm |
Number of teeth | 60-2 |
Connectors and Wires
Connector | Please see Variations |
Various motorsport and automotive connectors available on request. | |
Sleeve | HT wire ø 5.2 mm |
Wire size | AWG 20 |
Wire length L | < 27 cm |
Please specify the required wire length with your order. |
Installation Notes
The Mini-HA-P can be connected directly to most control units and data logging systems. |
Please avoid abrupt temperature changes. |
For mounting please use only the integrated plug. |
If a wheel with different dimensions is used (see Environment), the technical function has to be tested individually. |
Please ensure that the environmental conditions do not exceed the sensor specifications. |

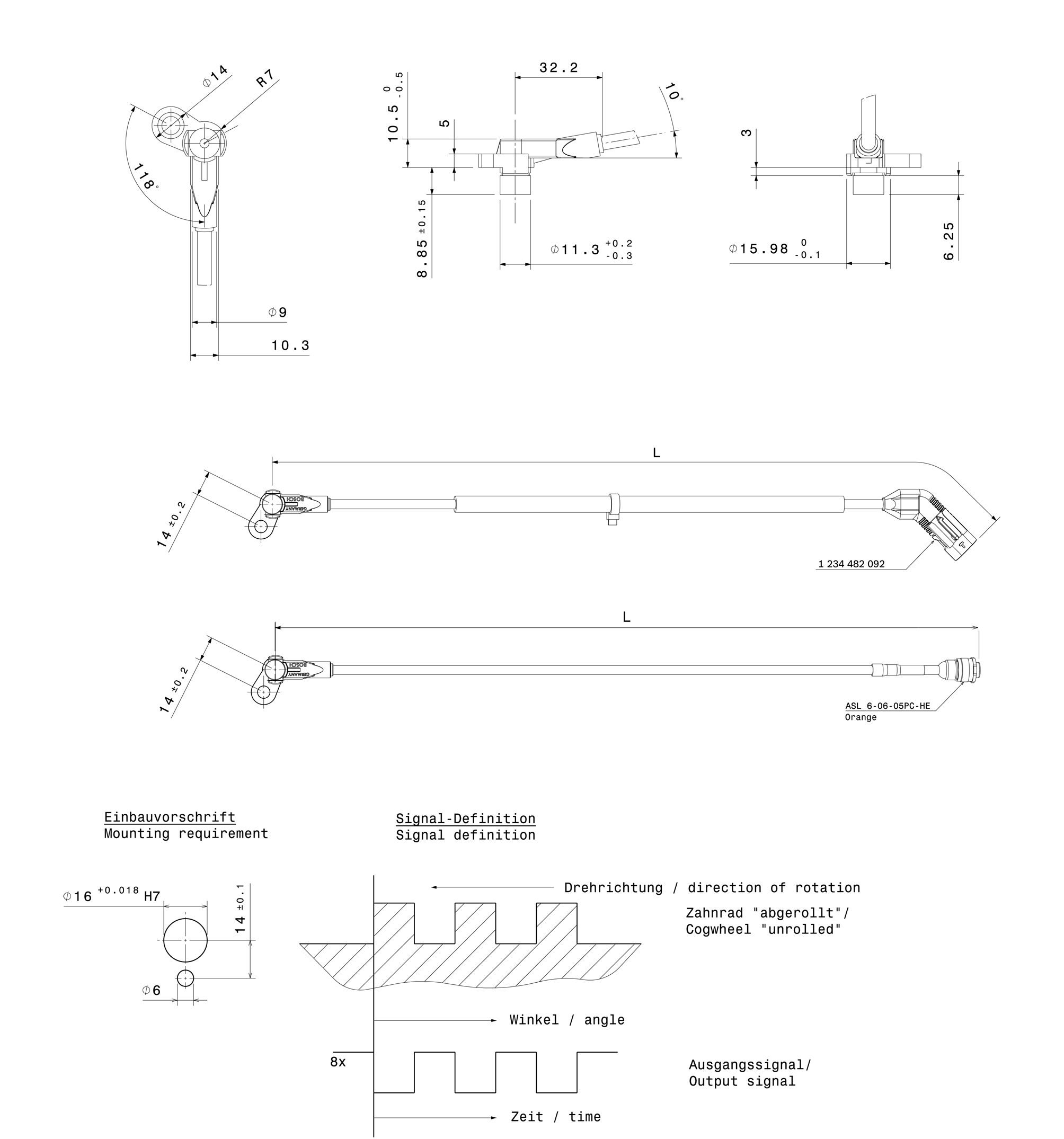

Please find further application hints in the offer drawing at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Speed Sensor Hall-Effect Mini-HA-P
Connector ASL606-05PC-HE
Order number: F02U.V00.564-03
Speed Sensor Hall-Effect Mini-HA-P
Connector 1 234 482 092
Order number: F02U.V00.566-02
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
